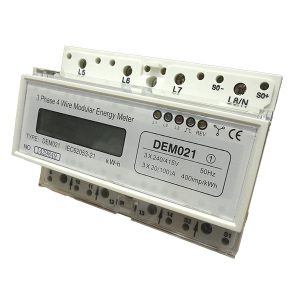

Three phase electronic watt-hour meter


A new style of three phase electronic watt-hour meter that accurately and directly measures active energy consumption from three phase AC electricity network. Displays energy consumption by step type impulse register.



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

PRODUCT FEATURES:

  • 35mm standard DIN rail installation, complying with standard DIN EN5002
  • LCD Display
  • Impulse output
  • 125mm wide
  • Wire Size: 25mm2

TECHNICAL PARAMETERS:

Accuracy Class 1
Rated Voltage 3x230V/400V
Rated Current 3 x 100A
Starting Current 0.4% lb
Insulation Performance AC Voltage 2KV for 1 minute impulse voltage 6KV

COMPLIANCE DOCUMENT:

KWH Meters Certificate of Compliance
