Approx. Stranding: 16 x 0.3mm

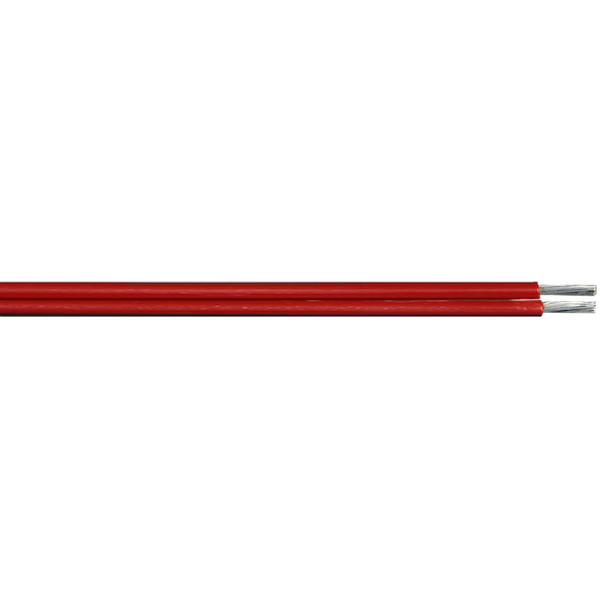

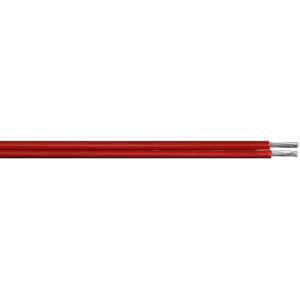

Standard Performance Flexible Marine Figure 8 50V AC/120V DC 75°C

Keywords: MFE



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.


Marine Pleasure crafts and other marine applications. These cables are flexible for installation and intermittent flexible use with free movement without tensile stress.

Audio Oxygen free copper for speakers and audio controls.


  • High electric and thermal conductivity

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation Special SPVC.


Operating Temperature Range Fixed -20°C to 90°C / Flexing -5°C to 75°C.

Maximum Conductor temperature 90°C.

Voltage Rating AC 50V / DC 120V.

Sheath Colour Red and Red with black trace.

Relevant Standards AS/NZS 1125, IEC 60332-1, ROHS Compliant.


MFE Certificate of Compliance

Product Code: MFE216030 Categories: ,

Nearest AWG: 16½

Approx. Stranding (No. of wires x mm): 16/0.30

Nominal Area (mm²): 1.13

Industry Equivalent: 3.00

AMP Rating at 30°: 16

Average Insulation Thickness (mm): 0.55

Max DC Resistance at 20°C (m Ω/mt): 17.30

Approx. Overall Diameter (mm): 2.45 x 5.20

Approx. Weight (Kg/Km): 29.0
