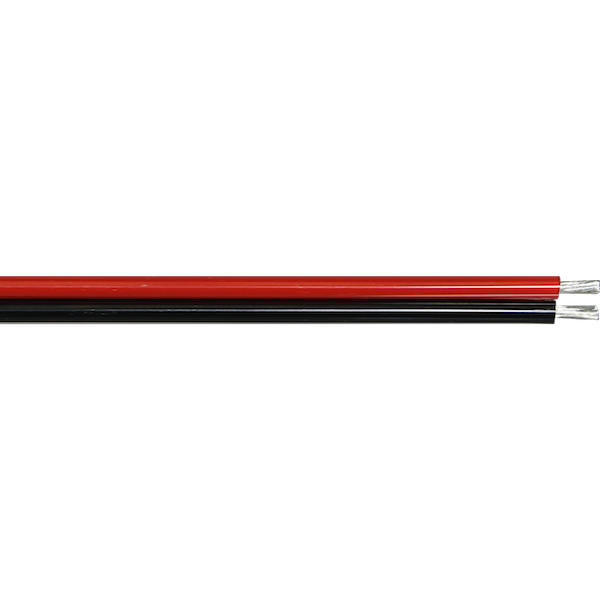

TW06T

2 x 6.0mm²


High Performance Flexible Twin Marine Cable 0.6/1kV 90°C


Keywords: TWT, Automotive, Telecommunications, Audio, Winches, Tinned Copper, Multi Core

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Marine Flexible tinned copper for battery power supplies and winches.

Automotive Suitable for use as battery/jumper cables (indoor/ outdoor) and power leads for forklifts and field conveyors.

Telecommunications Where finely stranded large cross section cables are required for minimal volt drop.

Audio Power supply to amplifiers and audio equipment where oxygen-free copper wire is required.


PRODUCT FEATURES:



  • Tinned fine stranded copper conductor

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (refer to Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation SPVC.

Sheath Transparent SPVC.


CHARACTERISTICS:


Operating Temperature Range Fixed -20℃ to 90℃ / Flexing -5℃ to 75℃.

Maximum Conductor Temperature 90℃. (Current ratings are based on 30℃ air temp. See technical section for de-rating factors).

Rated Voltage 0.6/1kV.

Sheath Colour Clear sheath.

Core Colour Red and Black.

Relevant Standards DIN VDE 0250, DIN VDE 472, IEC 60332-1, AS/NZS 1125, ROHS Compliant.


COMPLIANCE DOCUMENT:


TW-T Certificate of Compliance

No. of Cores x Size (mm²): 2 x 6.0

Approx. Stranding (No. of wires x mm): 192/0.20

Approx. Overall Diameter (mm): 6.5 x 14.0

Approx. Weight (Kg/Km): 220.0

Max D.C. Resistance at 20°C (m Ω/mt): 3.300

Nominal Amps un-enclosed protected from sun @ 30°C fixed installation 1 Phase
Spaced: 51
Touching:
48

1 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 75°C (Mv/Am): 7.496
