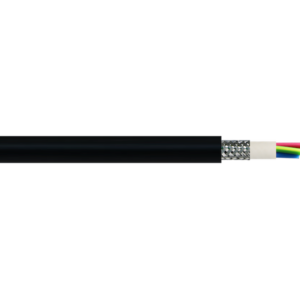

MDXCY4/1.5

3 x 1.5 + 1 x 1.5 mm2


High Performance Flexible VSD Marine / Power Cable 0.6/1kV 90°C


Keywords: MDXCY, VSD Variable Speed Drive, Screened, Tinned Copper, Marine, Pumping,

Clear

Quantity of item required. Cable is quoted in metres.



APPLICATIONS:


VSD Connection Designed for the connection of AC Variable Speed Drives (VSD) or where a flexible EMC screened cable is required. These cables are flexible for fixed installation as well as occasional flexing without tensile load.

RFI & EMI Protection With double screening (CBS & foil tape) and split interstitial earth cores (6mm² and above) this cable has optimum screening performance of low frequency and electromagnetic output.

Marine Flexible tinned copper VSD cable for installation in super yachts and other marine applications.

Pumping Suitable for permanent submersion up to 200 metres.


PRODUCT FEATURES:



  • Helps avoid reactance with other devices outside the plant

  • UV stabilised

  • Flame retardant

  • Moisture resistant

  • Suitable for permanent submersion to 200 metres

  • Resistant to environmental factors such as oxidation, ozone  and sunlight

  • To be earthed using an EMC compatible gland

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation X-90.

Bedding SPVC V-90HT.

Screening Up to 6.0mm 85% tinned copper braid screen c/w 100% foil screen coverage, 10mm and above 85% tinned copper braid screen, plus split earths.

Sheath SPVC V-90HT .


CHARACTERISTICS:


Operating Temperature Range Fixed -40°C to 90°C / Flexing -20°C to 90°C.

Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 0.6/1kV.

Max AC Operating Voltage Uo 0.7kV.

Minimum Bending Radius Fixed 7.5 x cable diameter / Flexing 15 x cable diameter.

Sheath Colour

3 Core - Black

4 Core - (1.5mm to 6.0mm) Black or Clear

4 Core - (10mm above) Black

Standard Core Colours

3 Core – Red, Black, Green/Yellow.

4 Core – Red, White, Blue, Green/Yellow.

Relevant Standards IEC 60228, IEC 60332-1, AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3008, ROHS Compliant.


COMPLIANCE DOCUMENT:


Supplier Declaration of Conformity - SDoC AS/NZS 5000.1

Product Code: MDXCY4/1.5 Categories: ,

No. of Cores x Size:
Power + Earth  (mm²):
 3 x 1.5 + 1 x 1.5

Approx. Stranding Power (No. of wires x mm): 30/0.25

Approx. Overall Diameter (mm): 13.5

Approx. Diameter under Screen (mm): 9.5

Approx. Weight (Kg/Km): 195

Nominal Amps un-enclosed protected from sun @ 30°C fixed application (Fixed Installation Touching): 21

3 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 90°C (Mv/Am): 30.000
