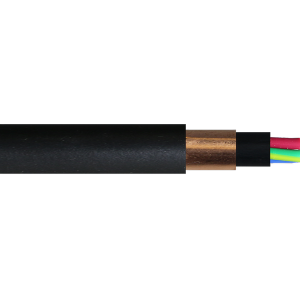

KSXCY4/35

3 x 35 + 3 x 6.0mm2


High Performance Fixed Copper Tape VSD Power Cable | Flexible Conductors for Fixed Applications


Keywords: KSXCY, VSD Variable Speed Drive, Screened, Class 5 Conductors, 0.6/1kV, Dairy Manufacturing



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


VSD Connection Fixed wiring cable designed for the connection of AC Variable Speed Drives or where a fixed EMC screened cable is required.

RFI & EMI Protection With single screening (Copper tape) and split interstitial earth cores (6mm² and above) this cable has optimum screening performance of low frequency and electromagnetic output.

Glanding Use Firstflex GM-EMC-FT Series glands for best contact.




PRODUCT FEATURES:



  • Flexible Class 5 conductors for easy installation

  • Helps avoid reactance with other devices outside the plant

  • UV stabilised

  • Flame retardant

  • To be earthed using an EMC compatible gland

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed plain copper stranded high flexibility (Class 5).

Insulation X-90.

Bedding PVC 5V-90.

Screening Copper Tape 30% overlap.

Sheath SPVC.


CHARACTERISTICS:


Operating Temperature Range Fixed -30°C to 90°C

Maximum Conductor Temperature 90°C

Rated Voltage Uo/U 0.6/1kV.

Max AC Operating Voltage Uo 0.7kV.

Sheath Colour Black.

Standard Core Colours Red, White, Blue and Green/Yellow.

Relevant Standards IEC 60332-1, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3008, RoHS Compliant


COMPLIANCE DOCUMENT:


Supplier Declaration of Conformity - SDoC AS/NZS 5000.1




Product Code: KSXCY4/35 Categories: ,

No. of Cores x Size:
Power + Earth  (mm²):
3 x 35 + 3 x 6.0

Approx. Stranding  (No. of wires x mm): 280/0.40

Approx. Overall Diameter (mm): 27.2

Approx. Weight (Kg/Km): 1600

Nominal Amps un-enclosed protected from sun @ 30°C fixed application (Touching): 149

3 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 90°C (Mv/Am): 1.170
