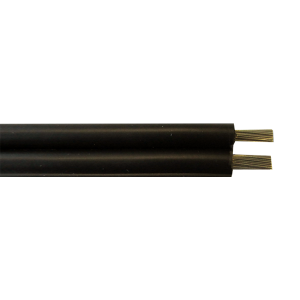

GLT02/1.5

2 x 1.5mm²


High Performance Flexible Twin Garden Lighting Cable ELV 90°C


Keywords: Festoon, polarity, water resistant, PVC, GLT



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Lighting Used for festoon and garden lighting where a flexible water resistant PVC cable is required.


PRODUCT FEATURES:



  • Raised rib on one core for polarity identification +/-

  • Tinned fine stranded copper conductor

  • UV stabilised

  • Water resistant

  • Heat, oil and chemical resistant (See Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility


Insulation Special SPVC V-90HT.


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C


Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).


Rated Voltage 50 VAC / 120 VDC ELV (Not for mains connection)


Minimum Bending Radius Fixed 10 x cable diameter / Flexing 15 x cable diameter.


Insulation Colour Black. (Raised rib on one core for polarity identification +/-)


Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1, ROHS Compliant.


COMPLIANCE DOCUMENT:


GLT Certificate of Compliance

Product Code: GLT02/1.5 Category:

Size: 2 x 1.5mm²

Approx Stranding: 30/0.25

Approx Overall Diameter: 4.0H x 8.3W

Approx Weight (Kg/Km): 64

Max DC Conductor Resistance @ 20°C  Ω/km: 13.7

1 Phase Volt Drop @50Hz/Max Conductor Temp (Mv/AM) 75°C: 32.3
