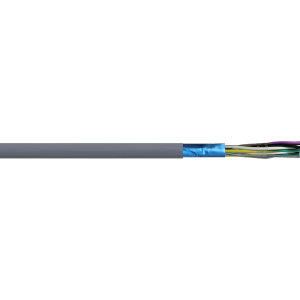

FT9525CS

25 PAIR 0.22mm²


High Performance Multipair Overall Foil Screened Tinned Data Cable 110VAC 90°C


Keywords: FT95-CS Series, BUS System, Data, Signals, Control, Marine, Tinned Copper, Communication



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


BUS Systems High performance, extra low capacitance cable suitable for RS232 building and home BUS automation systems.

Data Suitable for connecting data terminal and data communication equipment.

Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.

Marine Tinned copper conductors for use in marine applications.


PRODUCT FEATURES:



  • Tinned copper conductors

  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).

Insulation Special SPVC V-90 (available in LSHF on request).

Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire.

Sheath Special SPVC V-90 (available in LSHF on request).


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VRMS/150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Grey.

Standard Core Colours Each pair.

Relevant Standards AS/NZS 3808, IEC 60332-1-2, ROHS Compliant.


COMPLIANCE DOCUMENT:


FT95 Certificate of Compliance

Product Code: FT9525CS Categories: ,

No. of Cores x Size (mm²): 25 PAIR 0.22

Nearest AWG: 24

Approx. Stranding (No. of wires x mm²): 7/0.20

Approx. Overall Diameter (mm): 13.8

Approx. Weight (Kg/Km): 237.9
