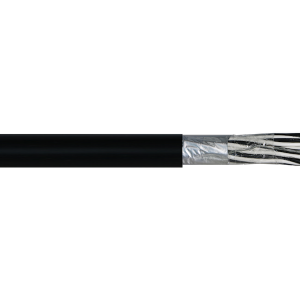

FT5520CS

20 PAIR 1.5mm²


High Performance Multipair Overall Foil Screened Tinned Instrumentation Cable 110VAC 90°C


Keywords: FT50/55-CS Series, BUS systems, Control, Signals, Marine, Tinned Copper



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.

Marine Tinned copper conductors for use in marine applications.

Oil and gas industry with vertical flame propagation to IEC 60332-3-22.


PRODUCT FEATURES:



  • Tinned copper conductors

  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Reduced flame propagation

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).

Insulation Special SPVC V-90 (available in LSHF on request).

Filler Non-hydroscopic polypropylene filler.

Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire (7 strands of 0.2mm²).

Sheath Special SPVC 5V-90 (available in LSHF on request).


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VAC / 150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Black.

Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores (Triple – White/Black/Red).

Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1-2, IEC 60332-3-22, IEC 60079.14, ROHS Compliant.


COMPLIANCE DOCUMENT:


FT50/55 Certificate of Compliance

Product Code: FT5520CS Categories: ,

No. of Cores x Size (mm²): 20 PAIR 1.5

Nearest AWG: 15

Approx. Stranding (No. of wires x mm²): 7/0.50

Approx. Overall Diameter (mm): 23.4

Approx. Weight (Kg/Km): 809

Technical Data

technical-data1
