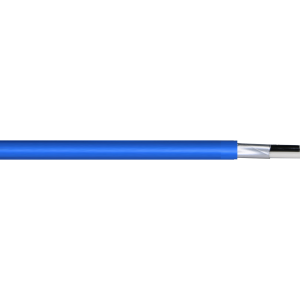

FT5001CSIS

1 PAIR 0.5mm²


High Performance Intrinsically Safe Multipair Overall Foil Screened Tinned Instrumentation Cable 110VAC 90°C


Keywords: FT50/55-CSIS Series, Hazardous Areas, BUS Systems, Signals, Control, Marine, Tinned Copper

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Hazardous Areas Suitable for wiring of intrinsically safe circuits.

BUS Systems Extra low capacitance cable suitable for RS485, RS422 POS, building and home BUS automation systems.

Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.

Marine Tinned copper conductors for use in marine applications.


PRODUCT FEATURES:



  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Reduced flame propagation

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).

Insulation Special SPVC V-90 (available in LSHF on request).

Filler Non-hydroscopic polypropylene filler.

Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire (7 strands of 0.2mm²).

Sheath Special SPVC 5V-90 (available in LSHF on request).


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VAC / 150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Intrinsically safe blue.

Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores (Triple – White/Black/Red).

Relevant Standards AS/NZS 1125, AS/NZS 2381, AS/NZS 3808, IEC 60332-1-2, IEC 60079.14, IEC 60332-3-22, ROHS Compliant.


COMPLIANCE DOCUMENT:


FT50/55 IS Certificate of Compliance

Product Code: FT5001CSIS Categories: ,

No. of Cores x Size (mm²): 1 PAIR 0.5

Nearest AWG: 20

Approx. Stranding (No. of wires x mm²): 7/0.30

Approx. Overall Diameter (mm): 5.1

Approx. Weight (Kg/Km): 28
