1 pair 0.75mm²

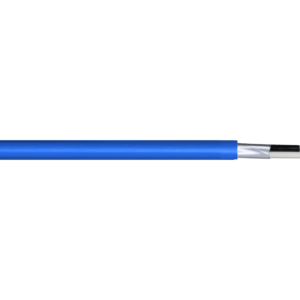

High Performance Multipair Overall Foil Screened Tinned Instrumentation Cable 110VAC 90°C

Keywords: FT75-CSIS, Signal, Control, Tinned, Copper, Marine, Intrinsically Safe


Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.


Hazardous Areas Suitable for wiring of intrinsically safe circuits

Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.

Marine Tinned copper conductors for use in marine applications


  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Reduced flame propagation

  • Heat, oil and chemical resistant


Conductor Annealed tinned copper stranded (Class 2).

Insulation Special SPVC V-90 (available in LSHF on request).

Filler Non-hydroscopic polypropylene filler.

Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire (7 strands of 0.2mm²).

Sheath Special SPVC 5V-90 (available in LSHF on request).


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VAC / 150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Intrinsically safe blue

Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores.

Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1-2, IEC 60332-3-22, IEC 60079.14, RoHS Compliant.


FT75-CS Series Certificate of Compliance

Product Code: FT7501CSIS Categories: ,

No. of Cores x Size (mm²): 1 pair 0.75

Nearest AWG: 18

Approx. Stranding (No. of wires x mm): 7/0.37

Approx. Overall Diameter (mm): 5.8

Approx. Weight (Kg/Km): 40


Technical Data
