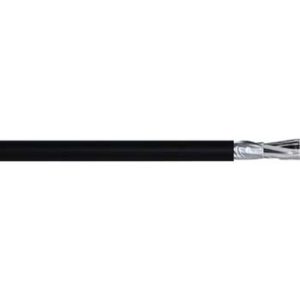

FT7504CS

4 pair 0.75mm²


High Performance Multipair Overall Foil Screened Tinned Instrumentation Cable 110VAC 90°C


Keywords: FT75-CS, Signal, Control, Tinned, Copper, Marine



Click to download full series data sheet

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.


Marine Tinned copper conductors for use in marine applications


PRODUCT FEATURES:



  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Reduced flame propagation

  • Heat, oil and chemical resistant


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).


Insulation Special SPVC V-90 (available in LSHF on request).


Filler Non-hydroscopic polypropylene filler.


Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire (7 strands of 0.2mm²).


Sheath Special SPVC 5V-90 (available in LSHF on request).


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VAC / 150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Black.

Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores.

Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1-2, IEC 60332-3-22, IEC 60079.14, RoHS Compliant.


COMPLIANCE:


FT75-CS Series Certificate of Compliance

Product Code: FT7504CS Categories: ,

No. of Cores x Size (mm²): 4 pair 0.75

Nearest AWG: 18

Approx. Stranding (No. of wires x mm): 7/0.37

Approx. Overall Diameter (mm): 10.0

Approx. Weight (Kg/Km): 118



Technical Data
