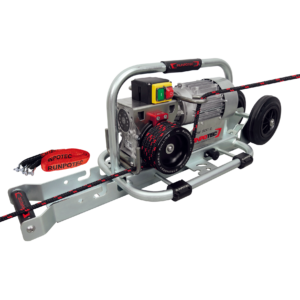

CW800E capstan winch incl. steel trolley mounting rail and strap

Product code: RUNP10138


Stock arriving early November.

Runpotec CW800E capstan winch incl. steel trolley mounting rail and strap



  • One person can pull up to 800 kg with the CW800E capstan winch
  • Selectable traction force or traction speed 800 kg|400 kg
  • Small, compact, handy
  • Many mounting options
  • Safety rope guide
  • Overload protection

Product code: RUNP10138



CW800E capstan winch incl. steel trolley mounting rail and strap

cable pulling winch for horizontal cable pulling

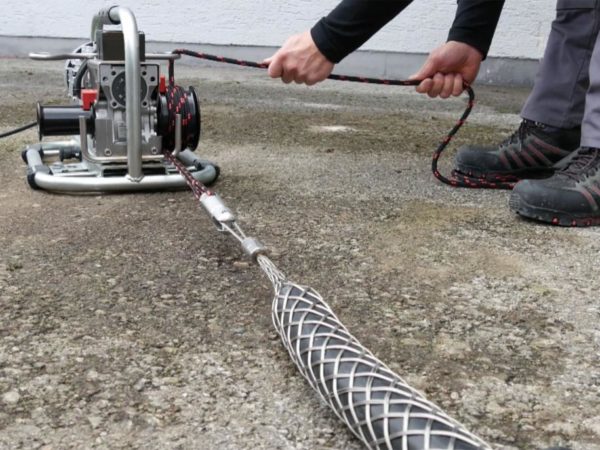

The CW 800 E capstan winch is ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg. The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. The trolley mounting rail also offers a very practical fastening option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E capstan winch and fasten it using the two fixing bolts. Safety instructions: Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.
Optimal area of application: for horizontal cable pulling.



Product Code: RUNP10138 Categories: , ,

Technical Data

Dimensions: L 1000 x B 370 x H 330 mm
Weight: 41.20kg
Strap length: 3 Metre
Motor connection: 230 V / 50 Hz
Motor drive power: 0,75 KWh / 5,1 A
Motor speed: 1400 U / min
Capstan (Small) Pulling force: up to 800 kg at 4m per min.
Capstan (Large) Pulling force: up to 400 kg at 8m per min.
Protection rating: IP 55

Scope of supply

1 x CW 800 E capstan winch, 1 x trolley mounting rail, 1 x 3 m strap

Download

RUNPOTEC-data-sheet-Capstan-winch-CW800E-RUNP10138
