Cable guide roller – shaft

Product Code: RUNP10157


Stock arriving early November.

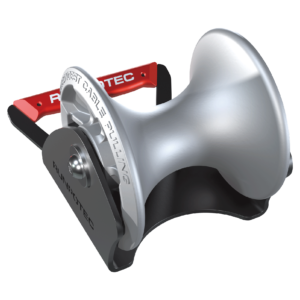

Runpotec Cable guide roller – shaft



  • Aluminium heavy-duty rollers with stainless steel ball bearings
  • Robust metal frame
  • CDP and powder coated
  • Ergonomic aluminium carrying handle
  • Load capacity 4.500 kg

Product Code: RUNP10157



Cable guide roller – shaft

for shaft inlets or outlets – roller diameter Ø 130 mm

The cable guide roller – shaft is ideally suited for mounting in shafts to pull cables gently around corners with the least possible resistance. It can be secured in place with screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality die-cast aluminium rollers with integrated ball bearing and the sturdy powder-coated steel frame guarantee a long service life. Ergonomic aluminium handle – Load capacity 4500 kg
Optimum area of application: to pull cables in shafts gently and effortlessly around corners



Product Code: RUNP10157 Categories: , ,

Technical Data

Dimensions: L 220,5 x B 155 x H 140 mm
Weight: 2,86 kg
Material: Roller: Aluminium / Frame: Steel
Load bearing capacity: 4500 kg
Max. cable diameter: Ø 100 mm
Roll diameter: Ø 130 mm

Scope of supply

1 x Cable guide roller – shaft

Download

RUNPOTEC-data-sheet-Cable-guide-roller-shaft-RUNP10157
