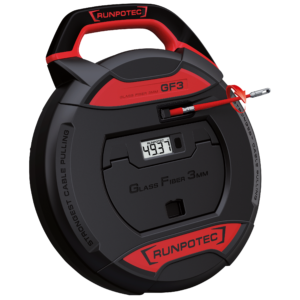

GF3 Slim cable pulling tool incl. digital metre counter, fibreglass rod Ø 3 mm 30m

Product Code: RUNP10208


Stock arriving early November.

Runpotec GF3 Slim cable pulling tool incl. digital metre counter, fibreglass rod Ø 3 mm



  • Super thin pulling system
  • Incl. digital meter counter
  • RG4.5 guiding head with front thread RTG Ø 3 mm incl. swivel
  • Automatic glide-back protection
  • 14-pieces accessory box
  • Total breaking load 100 kg
  • Extremely shock-resistant box
  • Suitable for occupied pipes or fibre optical cable laying (FTTH)

Product Code: RUNP10208



GF3 Slim cable pulling tool incl. digital metre counter

for pipe inner diameters 5 – 40 mm

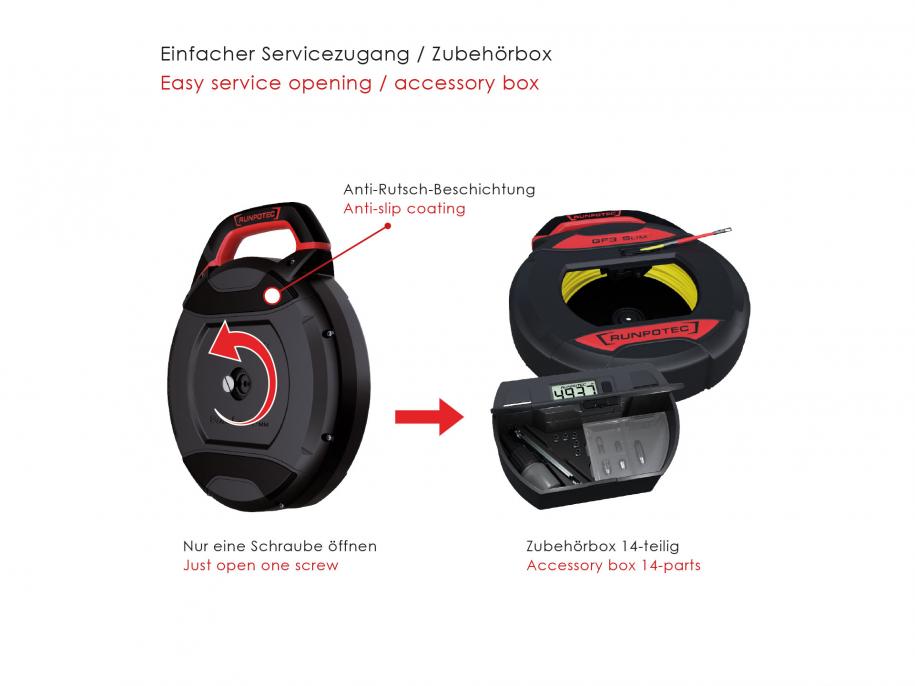

The GF3 SLIM – Fibreglass rod Ø 3 mm is a cable pulling tool including a digital metre counter (for determining the length of pipes/cables or for creating cable lists). With a maximum diameter of just Ø 4.5 mm, it is ideal for retrofitting occupied pipes or laying fiber optic cables (FTTH – Fiber To The Home). The fibreglass rod Ø 3 mm with patented RG4.5 guide head including swivel is stored in an extremely shock-resistant plastic box. The unit of measurement of the metre counter can be changed from Metric (m) to Imperial (ft). With the newly developed RG4.5 guide head with front thread RTG Ø 3 mm including swivel, it is possible to overcome bending radii up to R = 40 mm. The automatic glide back protection prevents the fiberglass rod from accidentally slipping back into the box. The box can be opened for service work with just one screw on the back. This also allows the integrated accessory box, which contains a 14-piece accessory set, to be removed. The included adapter thread with RTG Ø 3 mm internal thread to RTG Ø 6 mm external thread enables many possible combinations. The box also has an ergonomic carrying handle and an anti-slip coating on the back. The total breaking load of 100 kg refers to the glass fiber rod Ø 3 mm including RG4.5 guide head with twist compensation.
Optimal field of application: for pipes with an inner diameter of Ø 5 mm – 40 mm.

Product Code: RUNP10208 Categories: , ,

Technical Data

Length: 30 m
Bending radius: 40
Total breaking load: 100 kg
Recommended tube-Ø: 5-40 mm
Thread: RTG Ø 3 mm





Scope of supply

1 x GF3 SLIM incl. metre counter in plastic box, length 30 m, 1 x RG4.5 – Guiding head with swivel, contents of the accessory box: 1 x pulling grip, 1 x special adhesive 3 g, 5 x end joint with thread RTG Ø 3 mm, 2 x mounting wrench, 2 x pulling eyelet Ø 4.5 mm, 1 x starting head Ø 6 mm, 1 x starting head Ø 4.5 mm , 1 x coupling joint Ø 4.5 mm, 1 x adapter thread, 1 x CR2032 button battery

Download

RUNPOTEC-data-sheet-GF3-SLIM-with-meter-counter-RUNP10208
