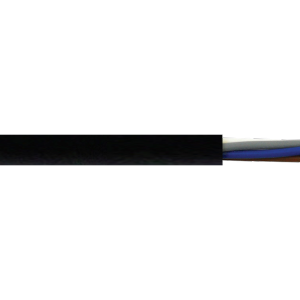

VC09/0.5

9 x 0.5mm2


Standard Performance Flexible Valve Control Cable 300/500V 90°C


Keywords: VC Series, Dairy, Factory



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Dairy Used for valve cables in dairy factory applications.


PRODUCT FEATURES:



  • Fine stranded tinned copper conductor

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation V-90.

Sheath SPVC 5V-90.


CHARACTERISTICS:


Operating Temperature Range Fixed -20 to 90°C / Flexing -5 to 75°C.

Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 300/500v.

Max AC Operating Voltage Uo 318v.

Minimum Bending Radius Fixed 7.5 x cable diameter / Flexing 15 x cable diameter.

Sheath Colour Black.

Standard Core Colour

6 core – Brown, Black, Red, White, Grey, Blue.

8 core – Brown, Black, Red, White, Grey, Blue, Purple, Green/Yellow.

9 core - Brown, Black, Red, White, Grey, Blue, Purple, Pink, Orange.

Relevant Standards AS/NZS 3808, AS/NZS 3008, IEC 60332-1, ROHS Compliant.


COMPLIANCE DOCUMENT:


VC Certificate of Compliance

Product Code: VC09/0.5 Categories: ,

No. of Cores x Size (mm²): 9 x 0.50

Approx. Stranding (No. of wires x mm): 16/0.20

Approx. Overall Diameter (mm): 8.6

Approx. Weight (Kg/Km): 93
