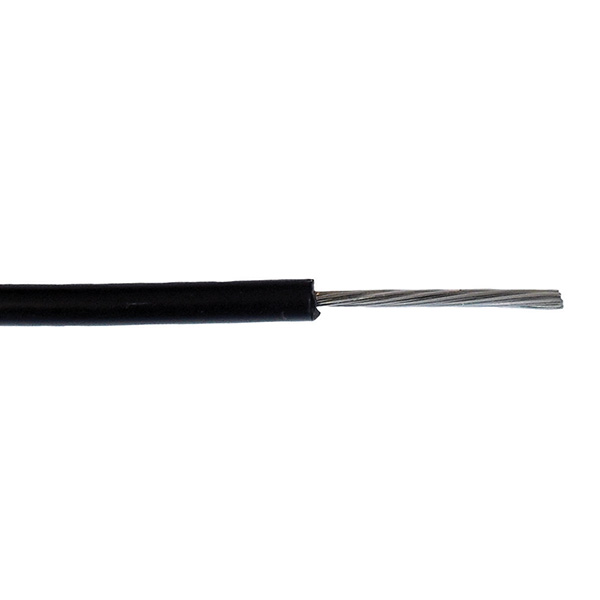

TC001.5BK

1 x 1.5mm2


High Performance Fixed Instrumentation Traffic Loop Cable 250V 80°C


Keywords: TC Loop Series



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Traffic Signals Operating in the frequency range 20kHz to 200kH. Suitable for slots cut into the road surface.


PRODUCT FEATURES:



  • UV resistant

  • Flame retardant

  • Heat, oil and chemical resistant (See Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed plain copper stranded (Class 2).

Insulation PP - Polypropylene.


CHARACTERISTICS:


Operating Temperature Range Fixed -10°C to 80°C.

Maximum Conductor Temperature 80°C.

Min. Insulation Resistance 20G Ω/kM @ 500Vdc.

Rated Voltage 250V.

Minimum Bending Radius 12 x cable diameter.

Sheath Colour Black.

Relevant Standards AS/NZS 2276.3, AS/NZS 1125, AS/NZS 1660, AS/NZS 1049 and ROHS Compliant.


COMPLIANCE DOCUMENT:


TC LOOP Certificate of Compliance

No. of Cores x Size (mm²): 1 x 1.5

Approx. Stranding (No. of wires x mm): 7/0.5

Insulation Thickness (mm): 0.8

 Max DC Resistance of conductor at 20°C (Ω/km): 13.8

Frequency Range (kHz): 20 to 200

Approx. Overall Diameter (mm): 3.5
