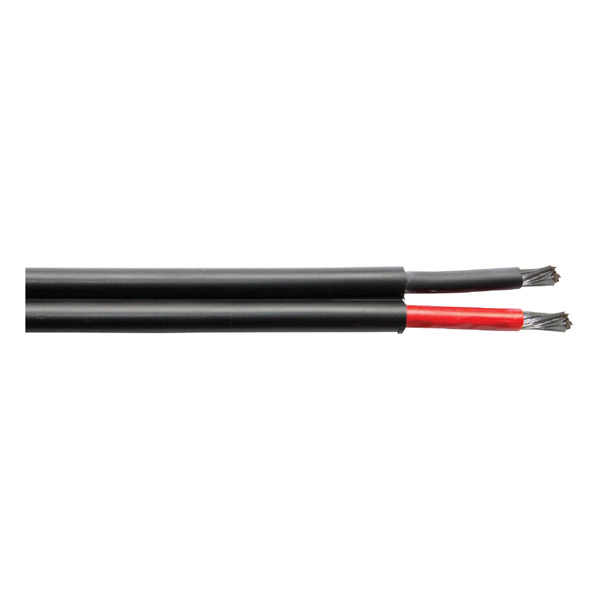

SOLAR2/6.0

2 x 6.0mm2


Standard Performance Solar Cable 1.0/1.5kV DC 120°C


Keywords: Solar Series, Switchboards, Busbars, Transformers, Tinned Copper



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Solar Suitable for cabling between interconnected solar modules or DC/AC inverter. (Photovoltaic power supply systems).




PRODUCT FEATURES:



  • Tinned fine stranded copper conductor

  • UV resistant

  • Environmentally friendly

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded Class 5 for flexibility.

Insulation EBXL 120℃ Compound.

Sheath EBXL 120℃ Compound.


CHARACTERISTICS:


Operating Temperature Range -40℃ to 90℃.

Maximum Conductor Temperature 120℃.

Rated Voltage Uo/U 1.0/1.5kV DC Voltage.

Minimum Bending Radius Fixed 4 x cable diameter / Flexing 6 x cable diameter.

Sheath Colour Black.

Standard Core Colours Black, Red.

Relative Standards AS/NZS 5033:2021, IEC 62930:2017,  ROHS Compliant and C E Certified. Approvals TÜV 2 Pfg 1169/08.2007 PV1-F Cert No: T 50402137 (To verify TÜV Rheinland certificate, go to www.tuv.com > Certificate Database).


COMPLIANCE DOCUMENT:


SOLAR Certificate of Compliance

No. of Cores x Size (mm²): 2 x 6.0

Approx. Stranding (No. of wires x mm): 84/0.30

Approx. Overall Diameter (mm): 5.30 x 10.80

Current carrying capacity at 60°C ambient temperature (free air): 70

Approx. Weight (Kg/Km): 156
