RG7 guiding head with front thread RTG Ø 6mm

Product code: RUNP20460


Stock arriving early November.

Runpotec RG7 guiding head with front thread RTG Ø 6mm



  • Ideally suited for RC2 inspection camera
  • Adaptable to various fiberglass rods, RUNPOSTICKS etc.
  • Extremely good bending and sliding behaviour
  • High tensile load

Product code: RUNP20460



RG7 guiding head with front thread RTG Ø 6mm

with swivel

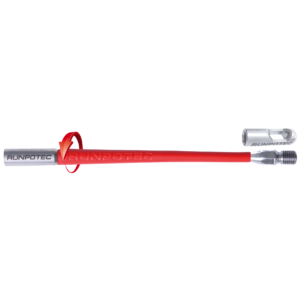

The RG 7 RUNPOGLIDER (guiding head) with front RTG Ø 6 mm thread is optimally suited for the multifunctional camera developed by RUNPOTEC. This allows the RC2 inspection camera to be adapted to various fiberglass rods or to the RUNPOSTICKS. Of course the RUNPOGLIDER front thread can also be used as a viewfinder with extremely good bending and sliding properties and high breaking load with all RUNPOTEC RTG Ø 6 mm threads. Also all RUNPOTEC cable pulling grip (sock) with RTG Ø 6 mm thread can be attached. The enclosed eyelet also allows for immediate pulling in of cables. An extra large eyelet hole provides for a higher cable intake of up to 7 x 2.5 mm². Also suitable for RUNPOSTICKS, fiberglass rod Ø 4.5 mm and Ø 6 mm.

Technical Data

Dimensions: L 300 x B 210 x H 10 mm
Diameter: 7 mm
Weight: 0.01 kg
Thread: RUNPOTEC RTG Ø 6 mm with front thread

Scope of supply

1 x RG 7 RUNPOGLIDER (guiding head) with front thread RTG Ø 6 mm, 1 x unscrewable eyelet RTG Ø 6 mm thread

Download

RUNPOTEC-data-sheet-RUNPOGLIDER-front-thread-RUNP20460
