Pulling rope Ø 10 mm incl. reel

2 sizes


Stock arriving early November.

Runpotec Pulling rope Ø 10 mm incl. reel



  • RUNP10167 – Pulling rope Ø 10 mm – 120m
  • RUNP10168 – Pulling rope Ø 10 mm – 200m
  • Spliced loops at the start and end of the rope
  • Low rope elongation
  • Practical reel for controlled winding and unwinding of the rope
  • Reel with extendable feet
  • Reel with parking brake
  • for horizontal cable pulling with CW800E capstan winch



Pulling rope Ø 10 mm incl. reel

for horizontal cable pulling with CW 800 E capstan winch

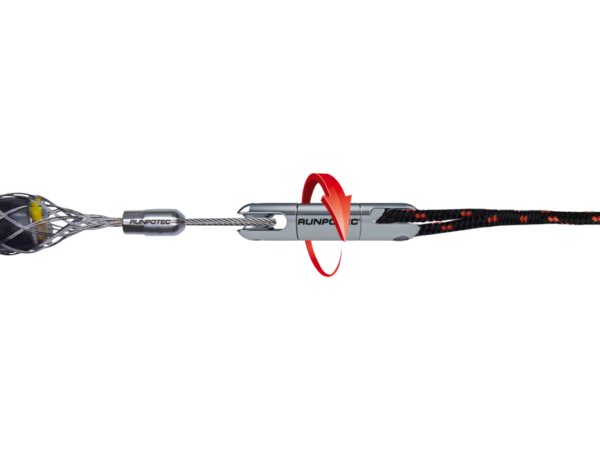

RUNPOTEC polyester pulling ropes are optimally suited for horizontal cable pulling with the RUNPOTEC CW 800 E capstan winch. RUNPOTEC recommends using the connecting swirl with swivel for horizontal cable pulling. It reduces frictional resistance and protects the cable and the feed system. The reel allows controlled winding and unwinding of the rope. In addition, the rope is perfectly stowed away and ready for use at any time. The extendable adjustable feet allow increased stability and have an integrated storage compartment on both sides. The reel is CDP/powder coated. Safety instructions: Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.
Optimal application: for horizontal cable pulling in combination with the CW 800 E capstan winch.

RUNP10167 – Pulling rope Ø 10 mm – 120m
RUNP10168 – Pulling rope Ø 10 mm – 200m



Product Code: RUNP10167 / RUNP10168 Categories: , ,

Technical Data

Dimensions: RUNP10176 – L 550 x B 220 x H 650 mm / RUNP10168 – L 820 x B 400 x H 900 mm
Length: 120m / 200m
Total breaking load: 1640 kg
Weight: 16 kg / 28kg
Reel basket Ø: 514 mm / 730mm
Internal basket width: 70 mm / 98mm
Material: Polyester rope
Ø Rope: 10 mm
Loop: 2x spliced-in loops

Scope of supply

1 x Pulling rope Ø 10 mm, incl. reel with parking brake and transport wheel

Download

RUNPOTEC-data-sheet-Pulling-rope-polyester-reel-DM-10mm-RUNP10167-RUNP10168





Watch video
