MTS27032

Approx. Stranding: 7 x 0.32mm

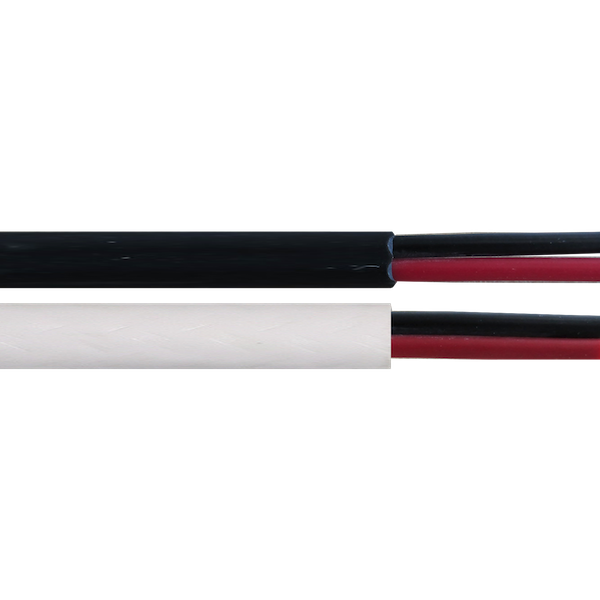

Standard Performance Flexible Marine Twin Sheath 50V AC /120V DC 90°C


Keywords: MTS



Click to download full series data sheet

Click to download Compliance Document

Clear

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Marine Pleasure crafts and other marine applications. These cables are flexible for installation and intermittent flexible use with free movement without tensile stress.

Audio Oxygen free copper for speaker wiring applications.


PRODUCT FEATURES:



  • Tinned copper conductor

  • High electric and thermal conductivity

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation SPVC.

Sheath SPVC.


CHARACTERISTICS:


Temperature Range Fixed -20°C to 90°C / Flexing -5°C to 75°C.

Maximum Conductor Temperature 90°C

Voltage Rating AC 50V / DC 120V.

Sheath Colour Black, White.

Core Colour Red & Black.

Relevant Standards AS/NZS 1125, IEC 60332-1, ROHS Compliant.


COMPLIANCE DOCUMENT:


MTS Certificate of Compliance

Product Code: MTS216020 Categories: ,

Nearest AWG: 20½

Approx. Stranding (No. of wires x mm): 7/0.32

Nominal Area (mm²): 0.56

Industry Equivalent: -

AMP Rating at 30°C: 10

Average Sheath Thickness (mm): 0.60

Average Insulation Thickness (mm): 0.50

Max DC Resistance at 20°C (m Ω/mt): 38.93

Approx. Overall Diameter (mm): 3.20 x 5.20

Approx. Weight (Kg/Km): 27.0
