MSMA3/2.5

3 x 2.5mm2

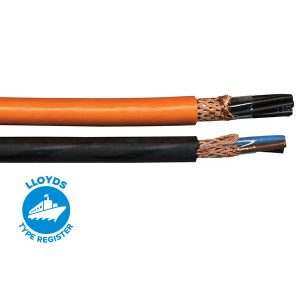

Standard Performance Fixed LSHF CBS Shipboard / Offshore Power Cable 0.6/1kV 90°C


Keywords: SMA Series, Lloyds Type, Marine, Oil rigs, Gas Rigs, Shipboard, EMC, Rail, Low Smoke Halogen Free



Click to download full series data sheet

Click to download Compliance Document

Clear

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Marine For fixed wiring installations on oil and gas rigs, shipboard and other marine applications requiring screened cable for EMC.

Rail or Rolling Stock Suitable for wiring in locomotives, rail cars, buses and coaches.


PRODUCT FEATURES:



  • Low smoke halogen free

  • PVC free

  • Lloyds approved

  • UV stabilised

  • Flame retardant

  • To be earthed at both ends using EMC compatible glands

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed plain copper stranded (Class 2).

Insulation XLPE halogen free X90.

Inner Covering (If any) Halogen free compound (IEC 60092-353).

Screening Tinned or plain copper braid.

Sheath Polyolefine compound SHF (IEC 60092-353 & 3.7.3A).


CHARACTERISTICS:


Operating Temperature Range Fixed -15°C to 90°C.

Maximum Conductor temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 0.6/1kV Max AC Operating Voltage Uo 0.7kV.

Minimum Bending Radius Up to 25mm² 4 x cable diameter /  Over 25mm² 6 x cable diameter.

Sheath Colour Orange or Black.

Standard Core Colours

Without Earth Conductor:

2 Core – Blue, Brown.

3 Core – Grey, Black, Brown.

4 Core – Blue, Black, Grey, Brown.

Multi Core – Black Numbered

Certification Society Approvals Lloyds, Type CJPJ85 or HFX-A/CU, ABS type YOZp, BV type YOZp, DNV.GL type YOZp other approvals available on request.

Relevant Standards IEC 61034, IEC 60754, IEC 60332-3-22, IEC 60092-350/351/352/353/359, IEC 60754-1/2, IEC 61034-1/2, IEC 60332-1, C E Directive 2006/95/EC, ROHS Compliant.


COMPLIANCE DOCUMENT:


SMA Certificate of Compliance

Product Code: MSMA3/2.5 Categories: ,

No. of Cores x Size (mm²): 3 x 2.5

Approx. Stranding (No. of wires x mm): 7/0.67

Approx. Overall Diameter (mm): 11.0

Approx. Weight (Kg/Km): 185

Nominal Amps un-enclosed protected from sun @ 30°C fixed installation 3 phase:
(Touching):
 33

3 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 90°C (Mv/Am): 16.400
