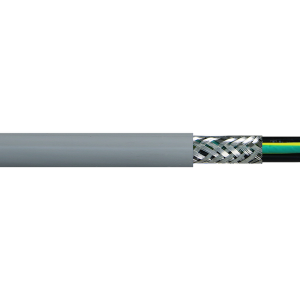

Control and Signals For use on machines, portable tools, conveying equipment and other industrial applications requiring screened cables for EMC. These cables are flexible for fixed installation as well as occasional flexing without tensile load.
- High flexibility
- Prevents external interference
- UV stabilised
- Flame retardant
- Resistant to environmental factors like ozone
- Abrasion resistance
- To be earthed using EMC compatible glands
- Extensive heat, oil, solvent and chemical resistance (see Chemical Rating Chart)
Conductor Annealed plain copper stranded high flexibility (Class 5).
Insulation SPVC V-75.
Screening Tinned copper braid 85% coverage.
Operating Temperature Range Fixed -20°C to 80°C / Flexing -5°C to 80°C.
Maximum Conductor Temperature 80°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).
Rated Voltage Uo/U 300/500v.
Max AC Operating Voltage Uo 318v.
Minimum Bending Radius Fixed 10 x cable diameter / Flexing 15 x cable diameter.
Sheath Colour Grey.
Standard Core Colours Black (numbered) + 1 Green/Yellow Earth (2 Core is without Earth).
Relevant Standards DIN VDE 0295, IEC 60228, DIN VDE 0281-1, DIN VDE 0293, DIN VDE 0245, IEC 60332-1, ROHS Compliant.
