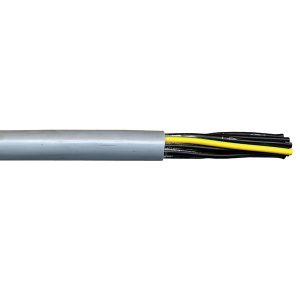

7 x 0.5mm2

High Performance Flexible Rubber Control Cable 300/500V 90°C

Keywords: CT Series, Signals, Industrial, Lighting, Harsh Environments, Chemtuff


Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.


Chemtuff  Used in applications that require a greater resistance to chemicals, solvents, oils and fats.

Control and Signals
For use on machines, portable tools, conveying equipment and other industrial applications. These cables are flexible for fixed installation as well as occasional flexing without tensile load.

Harsh Environments With its high flexibility, durable SER sheath and excellent resistance to oil, heat, abrasion, ozone, solvents and UV stabilisation, this cable is suited to harsh industrial environments.

Lighting & Entertainment With its extra durable SER sheath, this cable is suitable for indoor/outdoor lighting and control leads.


  • Extremely fine stranded copper conductor

  • UV stabilised

  • Resistant to environmental factors like ozone

  • Flame retardant

  • Extreme flexibility

  • Highly flexible, tough and durable with resistance to abrasion

  • Extensive heat, oil, solvent and chemical resistance (see Chemical Rating Chart)


Conductor Annealed plain copper stranded extreme flexibility (Class 5 & 6).

Insulation SPVC V-90.

Sheath SER105.


Operating Temperature Range Fixed -20°C to 90°C / Flexing -5°C to 80°C.

Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de rating factors).

Rated Voltage Uo/U 300/500v.

Max AC Operating Voltage Uo 318v.

Minimum Bending Radius Fixed 5 x cable diameter / Flexing 15 x cable diameter.

Sheath Colour Grey – as standard colour / Black – in some sizes subject to availability (marked B).

Standard Core Colours White (numbered) plus 1 Green/Yellow Earth. (2 Core is without Earth)

Relevant Standards IEC 60332-1, AS/NZS 1125, AS/NZS 3808, ROHS Compliant.


CT Certificate of Compliance

No. of Cores x Size (mm²): 7 x 0.5

Approx. Stranding (No. of wires x mm): 16/0.20

Approx. Overall Diameter (mm): 7.0

Approx. Weight (Kg/Km): 84
