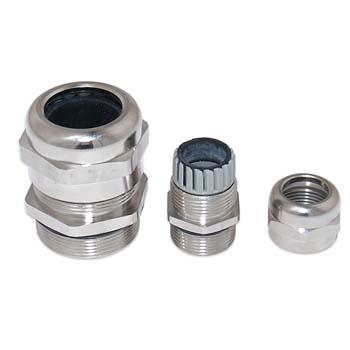

GK16STD


16MM GLAND KAPKON IP68 STANDARD

Keywords: GK-STD Series, Watertight Glanding, Unscreened Circular Cables

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Glanding For watertight glanding of unscreened circular cables.


PRODUCT FEATURES:



  • Halogen free

  • Silicone free

  • Phosphorous free

  • Cadmium free

  • Self extinguishing


CONSTRUCTION:


Material Bright nickel plated extruded brass gland body and compression head (Brass BS EN 50262 1999 / Brass extrusion BS 2874 CZ121 3Pb).

Seal PCP (Neoprene) rubber.

O-Ring PCP (Neoprene) rubber.

Insert Polyamide 6 traction relief clamping insert.


CHARACTERISTICS:


Operating Temperature Range -40°C to 80°C. Up to 100°C for short periods.

Protection Class Water rating IP68. Pressure rating 5 bar.


specification-8


COMPLIANCE DOCUMENT:


GK Certificate of Compliance

Product Code: GK16STD Categories: ,

Code: GK16STD

Entry Thread PG: M16 x 1.5

Thread Length(mm) D: 10.0

Cable Size Min - Max(mm) A: 6.0 – 9.0

Hexagonal Across Flats(mm) F: 17.0

Hexagonal Circumference(mm) C: 19.0

Assembled Length(mm) E: 20.0
