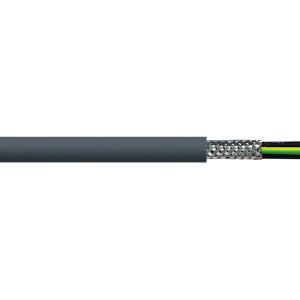

JFCY04/0.75H

4 x 0.75mm2


High Performance Flexible CBS Control Cable 300/500V 80°C


Keywords: JFCY-H Series, Marine, Signals, Industrial, Screened, Low Smoke Halogen Free, Pumping, Submersible, EMC, Tinned Copper Braid



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Marine Flexible LSHF tinned copper control cable for installation in superyachts, pleasure craft and other marine applications.

Control and Signals For use on machines, portable tools, conveying equipment and other industrial applications requiring screened cables for EMC. These cables are flexible for fixed installation as well as occasional flexing without tensile load.

Pumping Suitable for use as submersible (200 metres) pump controls.


PRODUCT FEATURES:



  • Very high flexibility

  • Low smoke halogen free

  • PVC free

  • Submersible to 200 metres

  • UV stabilised

  • Flame retardant

  • Resistant to environmental factors like ozone

  • Abrasion resistance

  • To be earthed using EMC compatible glands

  • Extensive heat, oil, solvent and chemical resistance (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation LSHF X-90

Screening Tinned copper braid 85% coverage.

Sheath LSHF.


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C / Flexing -5°C to 90°C.

Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 300/500v.

Max AC Operating Voltage Uo 318v.

Minimum Bending Radius Fixed 10 x cable diameter / Flexing 15 x cable diameter.

Sheath Colour Grey.

Standard Core Colours Black (numbered) + 1 Green/Yellow Earth (2 Core is without Earth).

Relevant Standards IEC 60228, IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 61034, ROHS Compliant.


COMPLIANCE DOCUMENT:


JFCY Certificate of Compliance

Product Code: JFCY04/0.75H Categories: ,

No. of Cores x Size (mm²): 4 x 0.75

Approx. Stranding (No. of wires x mm): 24/0.20

Approx. Overall Diameter (mm): 7.1

Approx. Weight (Kg/Km): 77
