GMF020611-25×21

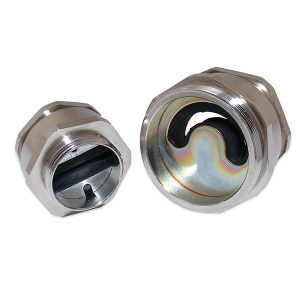

Metal IP54 Gland for Flat Flexible Cable M25 x 1.5

Keywords: GMF Series, Glanding of Flat Flexible Cables, Halogen Free





Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Glanding For glanding of FLAT flexible cables.


PRODUCT FEATURES:



  • Halogen free

  • Silicone free

  • Phosphorous free

  • Cadmium free

  • Self extinguishing


CONSTRUCTION:


Material Bright nickel plated extruded brass gland body and compression head.

Seal Oil resistant rubber.

Pressure Plate Galvanised steel.


CHARACTERISTICS:


Operating Temperature Range -40°C to 80°C. Up to 100°C for short periods.

Protection Class Water rating IP54.


COMPLIANCE DOCUMENT:


GMF Certificate of Compliance

Product Code: GMF020611-25x21 Categories: ,

Code: GMF020611-25x21

Entry Thread PG: 25 x 1.5

Thread Length(mm): 7.0

Cable Size Min-Max (mm): 4.5 - 7.5 x 14.0 - 20.0

Hexagonal Across Flats(mm): 28

Hexagonal Circumference(mm): 30

Assembled Length(mm): 23.0
