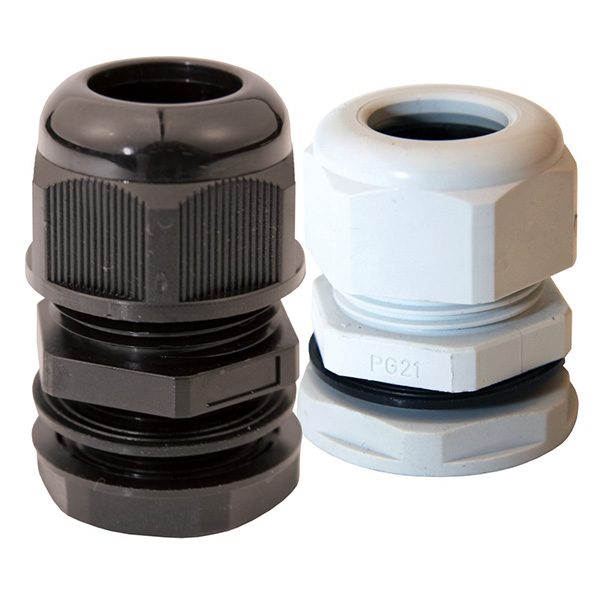

GPG13.5


GLAND NYLON PG13.5 IP68

Keywords: GPM/GPG Series, Watertight Glanding, Unscreened Circular Cables

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Glanding For watertight glanding of unscreened circular cables.


PRODUCT FEATURES:



  • Sealing nut has a locking mechanism to hold cable firmly and to accommodate a wider cable range

  • Long metric thread to aid installation

  • UL nylon 66 94v-2 halogen free

  • UV stabilised

  • Self extinguishing


CONSTRUCTION:


Material Black or Grey nylon body.

Seal EPDM rubber.

Washer EPDM rubber.

Insert Polyamide traction relief clamping insert.


CHARACTERISTICS:


Operating Temperature Range -40°C to 100°C. Up to 120°C for short periods.

Protection Class Water rating IP68. Pressure rating 5 bar.


specification-6


COMPLIANCE DOCUMENT:


GPM/GPG Certificate of Compliance

Code: GPG13.5

Entry Thread(mm) C1: 20.40

Thread Length(mm) C2: 10.0

Cable Size Min - Max(mm): 5.0 - 12.5

Spanner Size A/E(mm): 27/24
