GMCW25S

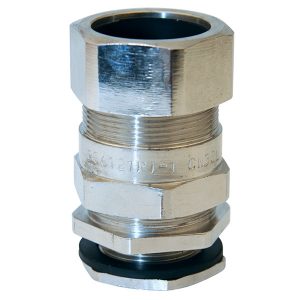

Metal IP66 CW-25S Armoured Compression Gland

Keywords: GMCW Series, Glanding of Steel Wire Armoured (SWA) Circular Cables



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Glanding For glanding of Steel Wire Armoured (SWA) circular cables.


OPTIONAL ACCESSORIES:



  • PVC shroud

  • Earth tag

  • Adaptors and reducers


CONSTRUCTION:


Material Bright nickel plated extruded brass gland body, armour locking ring and compression head BS2874 (CZ121 Brass).

Seal CPE (Neoprene) rubber.

Insert CPE (Neoprene) rubber.


CHARACTERISTICS:


Operating Temperature Range -60°C to 150°C.

Protection Class IP66.


specification-12


COMPLIANCE DOCUMENT:


GMCW Certificate of Compliance

Product Code: GMCW25S Categories: ,

Code: GMCW25S

Size: CW-25S

Entry Threads Dia. C(mm): 25

Entry Threads Length D(mm): 15

Cable Bedding Diameter A(mm) Min: 12.00

Cable Bedding Diameter A(mm) Max: 17.00

Cable Overall Diameter B(mm) Min: 17.50

Cable Overall Diameter B(mm) Max: 24.00

Hexagonal Size A/F(mm): 31.50

Hexagonal Size A/C(mm): 35.00

PVC Shroud Code: GMSH25S
