APPLICATIONS:
Glanding For watertight glanding of unscreened circular cables.
PRODUCT FEATURES:
- Halogen free
- Phosphorous free
- Cadmium free
- Self extinguishing

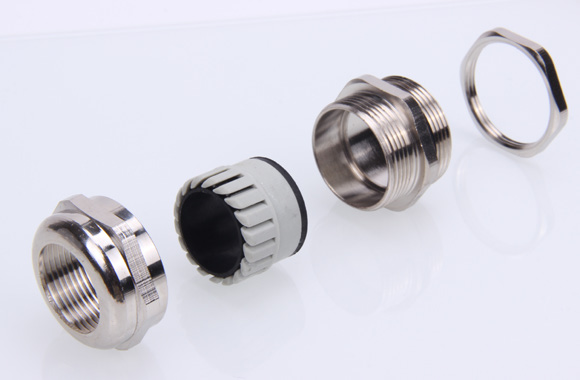

CONSTRUCTION:
Material Bright nickel plated extruded brass gland body and compression head (Brass BS EN 50262 1999 / Brass extrusion BS 2874 CZ121 3Pb).
Seal Silicone rubber.
O-Ring PCP Silicone rubber.
Insert Nylon clamping claw.
CHARACTERISTICS:
Operating Temperature Range -40°C to 80°C. Up to 100°C for short periods.
Protection Class Water rating IP68. Pressure rating 5 bar.
