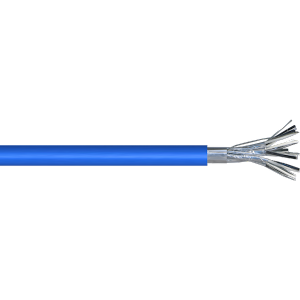

FT5010ESCSIS

10 PAIR 0.5mm²


High Performance Intrinsically Safe Multipair Overall & Individually Foil Screened Tinned Instrumentation Cable 110VAC 90°C


Keywords: FT50/55-ESCSIS, Hazardous Areas, Bus Systems, Signals, Control, Marine, Tinned Copper

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Hazardous Areas Suitable for wiring of intrinsically safe circuits.

Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.

Marine Tinned copper conductors for use in marine applications.


PRODUCT FEATURES:



  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Reduced flame propagation

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).

Insulation Special SPVC V-90 (available in LSHF on request).

Filler Non-hydroscopic polypropylene filler.

Screening Collective & individual shield of aluminium/polyester foil complete with tinned copper drain wire (7 strands of 0.2mm²).

Sheath Special SPVC 5V-90 (available in LSHF on request).


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VAC / 150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Intrinsically safe blue.

Standard Core Colours Each pair – 1 x white and 1 x black conductor, with numbered cores.

Relevant Standards AS/NZS 1125, AS/NZS 2381, AS/NZS 3808, IEC 60332-1-2, IEC 60079.14, IEC 60332-3-22, ROHS Compliant.


COMPLIANCE DOCUMENT:


FT50/55 IS Certificate of Compliance

Product Code: FT5010ESCSIS Categories: ,

No. of Cores x Size (mm²): 10 PAIR 0.5

Nearest AWG: 20

Approx. Stranding (No. of wires x mm²): 7/0.30

Approx. Overall Diameter (mm): 14.9

Approx. Weight (Kg/Km): 244
