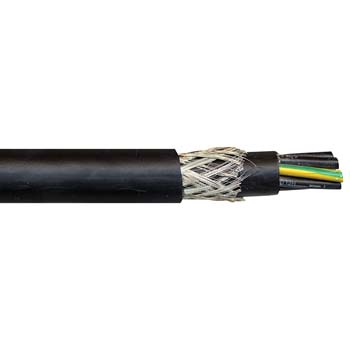

FDCY5/4.0

5  x 4.0mm


High Performance Flexible VSD Power Cable 0.6/1kV 80°C


Keywords: FDCY, VSD Variable Speed Drive, Screened, Tinned Copper



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


VSD Connection Designed for the connection of AC Variable Speed Drives (VSD) or where a flexible EMC screened cable is required. These cables are flexible for fixed installation as well as occasional flexing without tensile load.




PRODUCT FEATURES:



  • Helps avoid reactance with other devices outside the plant

  • UV stabilised

  • Flame retardant

  • Moisture resistant

  • Resistant to environmental factors such as oxidation, ozone and sunlight

  • To be earthed using an EMC compatible gland

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed plain copper stranded high flexibility (Class 5).

Insulation PVC.

Screening 85% tinned copper braid screen.

Sheath SPVC.


CHARACTERISTICS:


Operating Temperature Range Fixed -40°C to 80°C / Flexing -15°C to 70°C.

Maximum Conductor Temperature 80°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 0.6/1kV.

Max AC Operating Voltage Uo 0.7kV.

Minimum Bending Radius Fixed 6 x cable diameter / Flexing 15 x cable diameter.

Sheath Colour Black.

Standard Core Colours Black (Numbered) Plus / Green/Yellow Earth.

Relevant Standards IEC60228, EN50525-2-51, IEC60332-1, ROHS Compliant, Conform to 2014/35/E4CE


COMPLIANCE DOCUMENT:


FDCY Certificate of Compliance

Categories: ,

No. of Cores x Size: 5 x 4.0

Approx. Stranding Power (No. of wires x mm): 56/0.30

Approx. Overall Diameter (mm): 17.3

Approx. Weight (Kg/Km): 661

Nominal Amps un-enclosed protected from sun @ 30°C fixed application (Fixed Installation Touching): 25

3 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 90°C (Mv/Am): 10.200
