Caravan / Marine Supply Pillar


Clear

Quantity of item required. Cable is quoted in metres.

Campground and Marina power supply pillars are the better way to power up New Zealand’s Holiday Parks and Marinas. We have a range of options to the way electricity is provided for  Campground, Caravan Park and Marina users.


We can incorporate Kilowatt Hour Meters to measure power usage and charge customers only what they use.


PRODUCT FEATURES:



  • New Zealand design, manufactured from all plastic materials to ensure long life, particularly in our harsh seaside environments

  • Light controls include automatic daylight sensing

  • Your choice of 1, 2, 3 or 4 outlet options

  • Window access to RCD protection

  • Sealed against flying insect intrusion


CONSTRUCTION:


Construction PVC (Exception: Supply Pillar which has Powder Coated Aluminium base & frame with PVC front and back panels).

Outlets Unless otherwise requested, outlets are IEC 60309-2 16 Amp 230V 2 P + E.

IP44 rated – Caravan Supply Box

IP67 rated - Marina Supply Pillar & Supply Box.

RCBOs Each outlet has an RCBO in the circuit.


OPTIONAL EXTRAS:


MOUNTING POLE The Caravan Supply Box can be manufactured to mount on our 90mm (outside diameter) PVC pole. The 2M mounting pole is sold separately add product code CARSUPBXPOL when ordering.

LIGHT
An LED light is optional. Which can include a photo cell that will bring on the light automatically at dusk and switch it off again at dawn. The light can also be switched off manually.

KILOWATT HOUR METER Kilowatt Hour Meters are optional. These can be fitted to the Power Supply Box or Pillar to enable billing of each site for actual power used. Giving the Campground or Marina Site manager the option to charge for power.

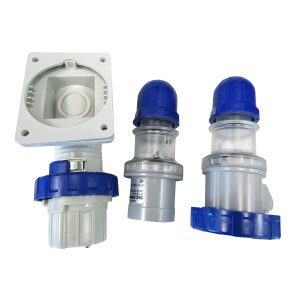

ACCESSORIES A comprehensive range of plugs, sockets, mounting boxes and other accessories are also available.


All outlets RCBO protected.


Want to add a Kilowatt Hour Meter?

If you wish to include Kilowatt Hour Meters to your outlets on a Supply Box or Pillar please add 'KWH' to the end of the product code when ordering.


COMPLIANCE DOCUMENT:


Campground & Marine Power Supply Units Certificates of Compliance
