Cable pulling grip sock with loop

8 sizes


Stock arriving early November.

Runpotec Cable pulling grip sock with loop

  • 8 sizes for varying cable diameter (see description)
  • Flexible double steel wire braid
  • Highest quality materials
  • Long service life
  • optimal in combination with CW 800 E capstan winch

RUNP20661 – for cable diameter 10 – 15mm
RUNP20662 – for cable diameter 15 – 20mm
RUNP20663 – for cable diameter 20 – 25mm
RUNP20664 – for cable diameter 25 – 30mm
RUNP20665 – for cable diameter 30 – 40mm
RUNP20666 – for cable diameter 40 – 50mm
RUNP20667 – for cable diameter 50 – 60mm
RUNP20668 – for cable diameter 60 – 70mm

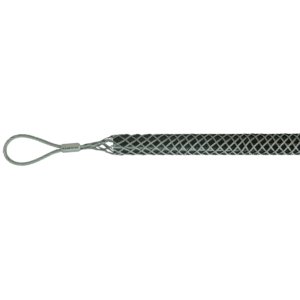

Cable pulling grip (sock) with loop

Cable pulling grip (sock) with loop. Made of flexible, robust and CDP coated double steel mesh. The re-braided cable pulling grip (sock) end offers a higher standard of safety. The cable pulling grip (sock) series with loop is perfectly suited in combination with the RUNPOTEC pulling ropes and CW 800 E capstan winch. RUNPOTEC recommends using the specially developed connecting swivel made of high-quality stainless steel for permanent tension. Highest quality materials with a long service life!

Product Code: RUNP20661 - RUNP20668 Categories: , ,

Technical Data

RUNP20661 / 62 / 63/ 64/ 65 / 66 / 67 / 68
Dimensions:
L 330 x B 330 x H 30 mm
Total breaking load: 1019 kg / 2080 kg / 2080 kg / 2080 kg / 3059 kg / 4078 kg /4996 kg / 4996 kg
Weight: 0,072 / 0,086 / 0,104 / 0,131 / 0,277 / 0,468 / 0,684 / 0,706 kg
Material: Galvanised double steel mesh

Scope of supply

1 x Cable pulling grip with loop CW

Download

RUNPOTEC-data-sheet-Cable-pulling-sleeve-loop-RUNP20661-68
