Cable guide roller chain 3 part

Product Code: RUNP10166


Stock arriving early November.

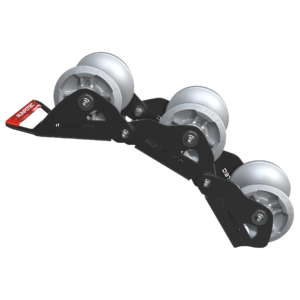

Runpotec Cable guide roller – chain – 3-part



  • Aluminium heavy-duty rollers with stainless steel ball bearings
  • Robust metal frame
  • CDP and powder coated
  • Ergonomic aluminium carrying handle
  • Load capacity 4.500 kg

Product Code: RUNP10166



Cable guide roller – chain – 3-part

suitable for universal use – 3-part – roller diameter Ø 130 mm

The cable guide roller – chain is extremely versatile and can be used for pulling cables gently around corners with the least possible resistance. Thanks to its adaptability, it can be used for a wide variety of situations and corners or edges. The cable guide roller – chain can be optionally expanded with additional rollers or links. It can be secured in place with a belt or screws via the assembly opening. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality, die-cast aluminium rollers with integrated ball bearings and the sturdy powder-coated steel frame guarantee a long service life. Ergonomic aluminium handle – Load capacity 4500 kg
Optimum area of application: suitable for universal use, shafts, cable trays, columns, etc.



Product Code: RUNP10166 Categories: , ,

Technical Data

Dimensions: L 580 mm x B 155 mm x H 140 mm
Weight: 9,04 kg
Material: Roller: Aluminium / Frame: Steel
Load bearing capacity: 4500 kg
Max. cable diameter: Ø 100 mm
Roll diameter: Ø 130 mm

Scope of supply

1 x Cable guide roller – chain

Download

RUNPOTEC-data-sheet-cable-guide-roller-chain-RUNP10166
