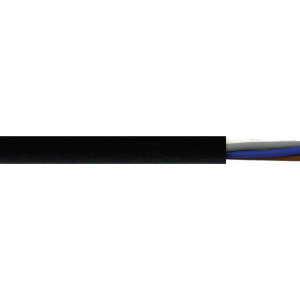

6 x 0.5mm2

Standard Performance Flexible Valve Control Cable 300/500V 90°C

Keywords: VC Series, Dairy, Factory


Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.


Dairy Used for valve cables in dairy factory applications.


  • Fine stranded tinned copper conductor

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation V-90.

Sheath SPVC 5V-90.


Operating Temperature Range Fixed -20 to 90°C / Flexing -5 to 75°C.

Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 300/500v.

Max AC Operating Voltage Uo 318v.

Minimum Bending Radius Fixed 7.5 x cable diameter / Flexing 15 x cable diameter.

Sheath Colour Black.

Standard Core Colour

6 core – Brown, Black, Red, White, Grey, Blue.

8 core – Brown, Black, Red, White, Grey, Blue, Purple, Green/Yellow.

9 core - Brown, Black, Red, White, Grey, Blue, Purple, Pink, Orange.

Relevant Standards AS/NZS 3808, AS/NZS 3008, IEC 60332-1, ROHS Compliant.


VC Certificate of Compliance

Product Code: VC06/0.5 Categories: ,

No. of Cores x Size (mm²): 6 x 0.50

Approx. Stranding (No. of wires x mm): 16/0.20

Approx. Overall Diameter (mm): 6.9

Approx. Weight (Kg/Km): 65
