SOCKET CAP (3P+E & 6P+E)


Amphenol Ecomate Socket Cap (3P+E & 6P+E)

Keywords: Circular Connectors, Plug





Click to download full series data sheet

Click to download Compliance Document

Clear

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Medical Industry Suitable for medical devices and test equipment with a threaded collar to prevent accidental uncoupling.

Multi Use Connectors Suitable for use on industrial machines and controls, data processing, instrumentation and marine.


PRODUCT FEATURES:



  • New cable screw connection with clamping ring

  • Strain relief and mounted gasket all in one component

  • Ergonomically shaped handle for better grip and safer handling

  • Fastening for the protective caps on the receptacle housing

  • One cable housing for all cable diameters (6mm – 12.5mm)


CONSTRUCTION:


Body Polyamide with M29 threaded collar, neoprene gasket and PG9 gland to suit cable.

Diameter 6.0 – 12.5mm.

Contacts Silver plated copper.

3P + E Screw Terminal 400V Max. wire size 2.5mm² / AWG 14 / 16A 400V /12A 250V @ 55°C.

6P + E Solder Terminal 250V Max. wire size 0.75mm² / AWG 20 / 13A 250V @ 55°C.


CHARACTERISTICS:


Operating Temperature Range

3 Pin + Earth Screw Terminal -40°C to 100°C

6 Pin + Earth Solder Terminal -40°C to 125°C

Protection Class IP67 when mated or with cap fitted.

Relevant Standards DIN 9684.1, DIN 5510, DIN EN 60526, DIN VDE 1781, DIN VDE 1780, UL E33093, German Lloyd, CSA-48932.


COMPLIANCE DOCUMENT:


Amphenol Ecomate Certificate of Compliance

Product Code: N/A Category:

Code: T6483-200E

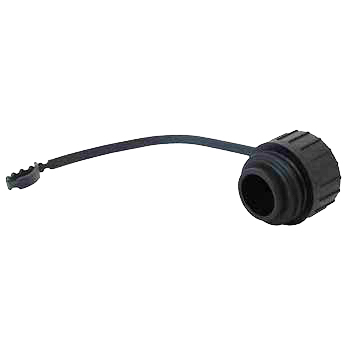

Type: Panel-Short String
(C01600V00000012)


Code: T6483-201E

Type: Cord-Long String
(C01600V00001012)
