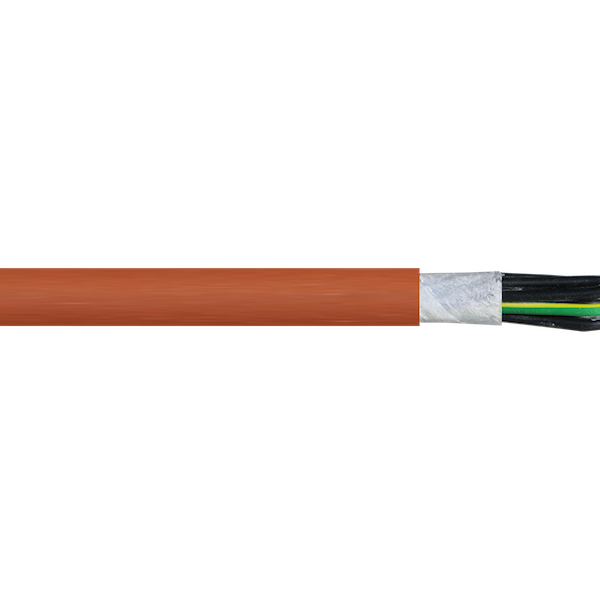

SIHF12/1.5

12 x 1.5mm2


High Performance Flexible Silicone Rubber High Temperature Cable 300/500V 180°C


Keywords: SIHF Multi Core Series, Low Temperatures, Kilns, Boilers, Cool Stores, Tinned Copper

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


High Temperature Suitable for wiring on kilns, boilers, lighting and other high temperature applications and surfaces not exceeding 180°C.

Low Temperature Used for wiring in industrial cool stores and freezers to -60°C.


PRODUCT FEATURES:



  • Halogen – Free IEC 60754

  • Tinned fine stranded copper conductor

  • High ignition or flashpoint

  • Minimal change to dielectric strength at high temperature

  • Minimal change to insulation resistance at high temperature

  • In the event of a fire the silicone forms an insulating layer of SiO2

  • UV stabilised

  • Flame retardant

  • Resistant to environmental factors such as oxidation, ozone and sunlight

  • Very good behaviour to variations of outdoor temperature

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation Silicone rubber.

Sheath Silicone rubber.


CHARACTERISTICS:


Operating Temperature Range Fixed -60°C to 180°C / Flexing -40°C to 180°C.

Maximum Conductor Temperature 180°C.

Rated Voltage Uo/U 300/500v.

Max AC Operating Voltage Uo 318v.

Minimum Bending Radius Fixed 4 x cable diameter / Flexing 7.5 x cable diameter.

Sheath Colour Reddish-Brown

Standard Core Colours

3 Core – Blue, Brown, Green/Yellow.

4 Core – Brown, Black, Grey, Green/Yellow.

5 Core – Blue, Brown, Black, Grey, Green/Yellow.

Multi Core – Black Numbered, Green/Yellow.

Relevant Standards IEC 60332-1, IEC 60754-2, IEC6 0228, VDE 0472, VDE 0282, C E Directive 2006/95/EC, ROHS Compliant.


 COMPLIANCE DOCUMENT:


SIHF Certificate of Compliance

Product Code: SIHF12/1.5 Categories: ,

No. of Cores x Size (mm²): 12 x 1.5

Approx. Stranding (No. of wires x mm): 30/0.25

Approx. Overall Diameter (mm): 14.6

Approx. Weight (Kg/Km): 413

Nominal Amps un-enclosed protected from sun or in ventilated duct @ 150°C fixed installation (Touching or in ventilated ducts): 18
