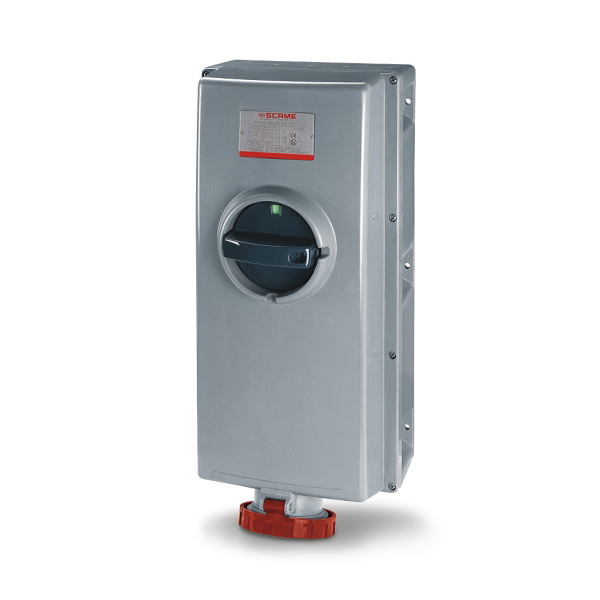

Scame IP66 Advance [GRP] Interlocked Switch Socket Outlets – 415V Red

125 Amp


IP67 Advance [GRP] Series – 415V Red

Clear

Quantity of item required. Cable is quoted in metres.

IP66 – Advance [GRP] Series Interlocked Switch Socket Outlet – 415V Red

The Advance GRP series are made from glass reinforced polyester which guarantees excellent heat and fire resistance; it does not propagate flames, emit halogens or smoke.

  • Glass reinforced polyester combined with the thickness of the casing walls guarantees excellent mechanical resistance to impacts (IK10)
  • Offering resistance to chemical agents and atmospheric agents making it suitable for most extreme environmental conditions
  • The double degree of protection (IP66) guarantees seal against entry of solid objects or liquid
  • Outstanding resistance to UV radiation

COMPLIANCE DOCUMENT:

Scame Outlets Certificate of Compliance

Product Code: N/A Category:

Code: 503.12586

Rating: 125 Amp

Pins: 3 P + E

Earth Position: 6H


Code: 503.12587

Rating: 125 Amp

Pins: 3 P + N + E

Earth Position: 6H

Technical Specifications

Rated Current 125A

IP Rating IP66

IK Rating IK10

Rated Voltage 100÷690V

Operating Temperature -25°C ~ 60°C

Self-extinguishing UL94 V0

Colour RAL 7037 grey
