Materials and Handling Systems For use as a pendant control or feeder cable for cranes, hoists and lifts.

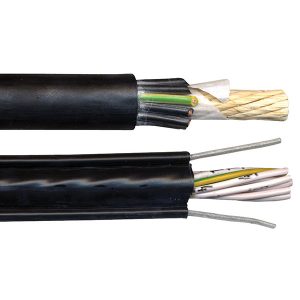

P Type The central support system aids in the prevention of inner core breakage when twisting the pendant control by spacing the cores around the circumference of the cable. Free suspension to 80 metres.
P2S Type This has external steel wire supports to act as strain relief when the cable is under tension and to help with anti-twist and long cable life.
- Extremely fine stranded copper conductor
- Extremely flexible
- UV stabilised
- Flame retardant
- Resistant to environmental factors like oxidation, ozone and sunlight
- Good tensile strength, tearing strength and abrasion resistance
- Heat, oil and chemical resistant (see Chemical Rating Chart)
Conductor Annealed tinned copper stranded extreme flexibility (Class 5 & 6).
P Type – EPR rubber c/w central support core of hemp.
P-2S Type – SPVC c/w 2 x external steel wire supports.
P Type – CPE elastomer rubber.
P-2S Type – TPE thermoplastic polyester elastomer.
Operating Temperature Range Fixed -40°C to 75°C / Flexing -30°C to 70°C.
Maximum Conductor Temperature 75°C.
Rated Voltage Uo/U 300/500v.
Max AC Operating Voltage Uo 318v.
Minimum Bending Radius
P Type - without stress 10 x cable diam / with stress 20 x cable diam.
P-2S Type - 10 x cable diam.
Sheath Colour Black.
Standard Core Colours Black (numbered) plus 1 Green/Yellow Earth.
Relevant Standards DIN VDE 0293, IEC 60332-1, DIN VDE 0295 CL6, C E Directive 2006/95/EC, ROHS Compliant.
