MCX04/35

3 x 35 + E10mm2

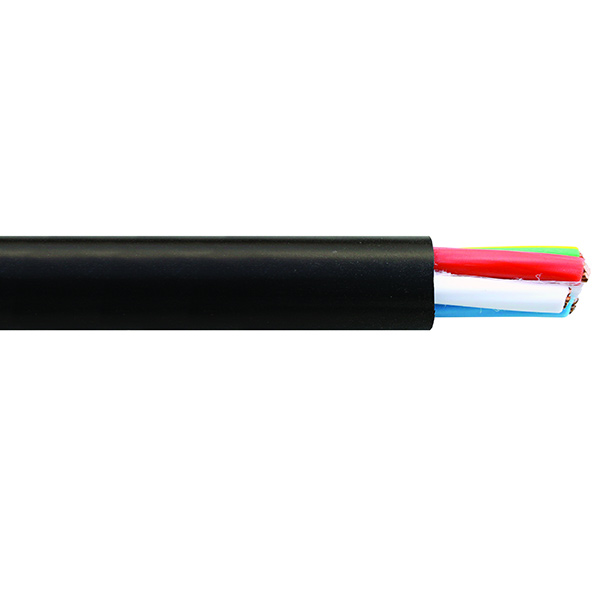

High Performance Fixed Circular TPS Cable 0.6/1kV 90°C


Keywords: MCX, MAXCAB Easy Run, Construction, Power, Direct Burial, Mains, Sub-mains, Underground ducting, Outdoors Use



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Power Suitable for mains and submains in a fixed application.

Direct Burial Can be installed underground when installed as part of a Category B wiring system.

Outdoor Use Suitable for outdoor use and wet locations not subject to mechanical damage.

Flexible Class 5 conductors for easy installation in fixed applications.

Hazardous Areas With correct explosion proof glands this cable can be installed in locations subject to explosion hazards AS/NZS 60079.14.


PRODUCT FEATURES:



  • Flexible Class 5 conductors for easy installation

  • Suitable for circuits buried direct

  • Metre marking for better length control

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed plain copper stranded high flexibility (Class 5).

Insulation X-90.

Sheath SPVC.


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C. (Current ratings are based on 30°C air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 0.6/1kV.

Minimum Bending Radius Fixed 12 x cable diameter.

Sheath Colour Black.

Standard Core Colour

3 core – Red, Black, Green/Yellow.

4 core – Red, White, Blue, Green/Yellow.

5 core – Red, White, Blue, Black, Green/Yellow.

Relevant Standards AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, IEC 60332-1-2, AS/NZ 60079.14 ROHS Compliant.


COMPLIANCE DOCUMENT:


Supplier Declaration of Conformity - SDoC AS/NZS 5000.1

Product Code: MCX04/35 Categories: ,

No. of Cores x Size (mm²): 3 x 35 + E10.0

Approx. Stranding (No. of wires x mm): 280/0.40 + 80/0.40

Approx. Overall Diameter (mm): 27.7

Approx. Weight (Kg/Km): 1332

Nominal Amps un-enclosed @ 30°C fixed application (Touching): 149

3 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 90°C (Mv/Am): 1.17
