Magnet fishing-set 4-part 1.5 kg – 2.9 kg

Product code: RUNP20475


Stock arriving early November.

Runpotec Magnet fishing-set (4-part) 1.5 kg – 2.9 kg



  • Magnetic catch system for pipe from inner diameter 12 mm
  • Adhesion force from 1.5 kg – 2.9 kg
  • Suitable for all RUNPOTEC products with RTG Ø 6 mm thread

Product code: RUNP20475



Magnet fishing-set (4-part) 1.5 kg – 2.9 kg

Accessories for cable pulling systems

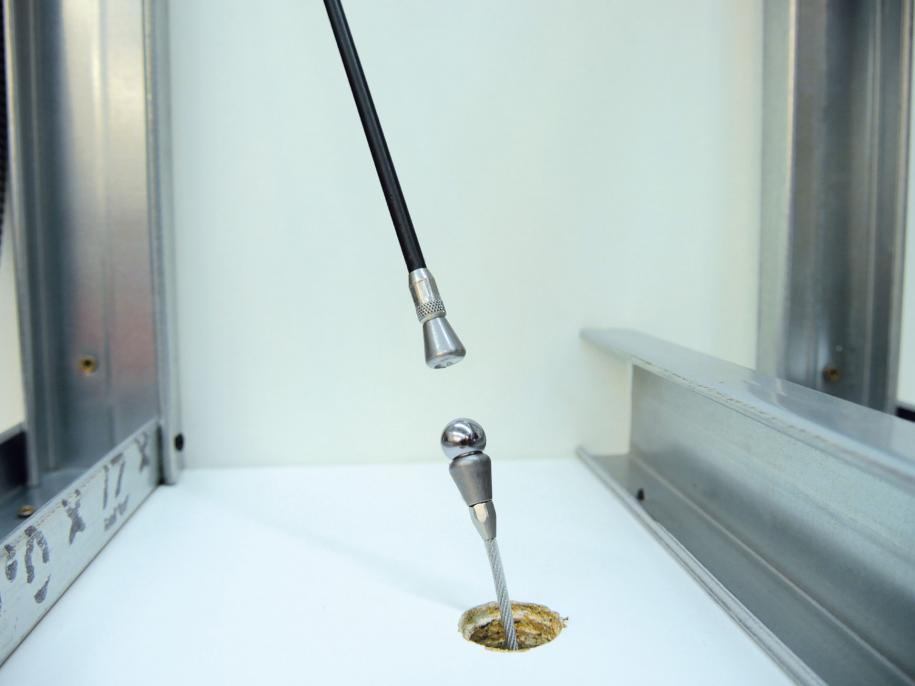

Consists of 2 x initial bulbs for magnetic adhesion, 1 x magnetic ball Ø 10 mm with 1,5 kg holding force and 1 x magnetic ball Ø 14 mm with 2,9 kg holding force. Is screwed onto the tip of two push-in systems and can also be used as a catching set or for “fishing” with smaller pipe cross-sections (electric pipe Ø 16, 20, 25, 32 mm).

Technical Data

Dimensions: L 300 x B 210 x H 15 mm
Diameter: Ø 10 and 14 mm
Recommended tube-Ø: 16 – 40 mm
Weight: 0.02 kg
Magnetic adhesion: 1.5 kg – 2.9 kg

Scope of supply

1 x Magnetic ball 1.5 kg Ø 10 mm, 1 x magnetic ball 2.9 kg Ø 14 mm, 2 x starting heads for magnetic adhesion

Download

RUNPOTEC-data-sheet-Magnet-fishing-set-RUNP20475
