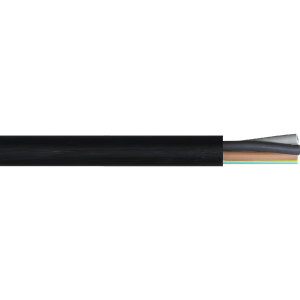

HR5G16

5 x 16.0mm2


High Performance Flexible Rubber Cable 450/750V 60°C


Keywords: HR Series, Hazardous Areas, Treatment Plants, Lighting, Power, Pumping, Submersible, Multi Core



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Hazardous Areas With correct explosion proof glands this cable can be installed in locations subject to explosion hazards rated 0.6/1kV (DIN VDE 0165).

Waste Water Treatment Plants Suitable for submersion in polluted liquids and aggressive environments up to 10 metres.

Lighting & Entertainment With its extra durable CPE sheath, this cable is suitable for outdoor temporary power supplies and lighting leads.

Power Used on construction sites due to its outstanding flexibility, durability and cable memory.

Pumping Suitable for permanent submersion to 200 metres.

Materials and Handling Systems Suitable for cable spring reelers and large energy chains.


PRODUCT FEATURES:



  • UV stabilised

  • Flame retardant

  • Water and moisture resistant

  • Good elongation at break

  • Resistant to environmental factors such as oxidation, ozone and sunlight

  • Suitable for permanent submersion to 200 metres

  • Good tensile strength, tearing strength and abrasion resistance

  • Heat, oil and chemical resistant (See Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed plain copper stranded high flexibility (Class 5).

Insulation SER.

Sheath SER.


CHARACTERISTICS:


Operating Temperature Range Fixed -40°C to 60°C / Flexing -30°C to 60°C.

Maximum Conductor Temperature 60°C.

Rated Voltage Uo/U 450/750V (Fixed laying permitted up to 1000V).

Minimum Bending Radius Fixed 5 x cable diameter.

Sheath Colour Black.

Standard Core Colours

2 Core – Blue, Brown.

3 Core – Blue, Brown, Green/Yellow.

4 Core – Brown, Black, Grey, Green/Yellow.

5 Core – Blue, Brown, Black, Grey, Green/Yellow.

Multi Core – Black Numbered + Green/Yellow.

Relevant Standards HO7RN-F, HD361 S2/S3, VDE 0295, VDE 0282, IEC 60811-2-1, VDE 0293-308, EN 60811-2-1, IEC 60332-1, C E Directive 2006/95/EC, and ROHS Compliant.


COMPLIANCE DOCUMENT:


HR Certificate of Compliance

Product Code: HR5G16 Categories: ,

No. of Cores x Size (mm²): 5 x 16.0

Approx. Stranding (No. of wires x mm): 128/0.41

Approx. Overall Diameter +/- 10% (mm): 30.0

Approx. Weight (Kg/Km): 1810

Nominal Amps un-enclosed protected from sun @ 30°C fixed application (Touching)71

3 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 90°C (Mv/Am): 2.550
