Hazardous Areas With correct explosion proof glands this cable can be installed in locations subject to explosion hazards rated 0.6/1kV (DIN VDE 0165).
Waste Water Treatment Plants Suitable for submersion in polluted liquids and aggressive environments up to 10 metres.
Lighting & Entertainment With its extra durable CPE sheath this cable is suitable for outdoor temporary power supplies and lighting leads.
Marine Flexible tinned copper cable for installation in pleasure craft and other marine applications.
Power Used on construction sites due to its outstanding flexibility, durability and industrial performance.
Pumping Suitable for permanent submersion to 200 metres.
Materials and Handling Systems Suitable for cable spring reelers and large energy chains.
- Tinned fine stranded copper conductor
- UV stabilised
- Flame retardant
- Water and moisture resistant
- Good elongation at break
- Resistant to environmental factors such as oxidation, ozone and sunlight
- Suitable for permanent submersion to 200 metres
- Good tensile strength, tearing strength and abrasion resistance
- Heat, oil and chemical resistant (see Chemical Rating Chart)

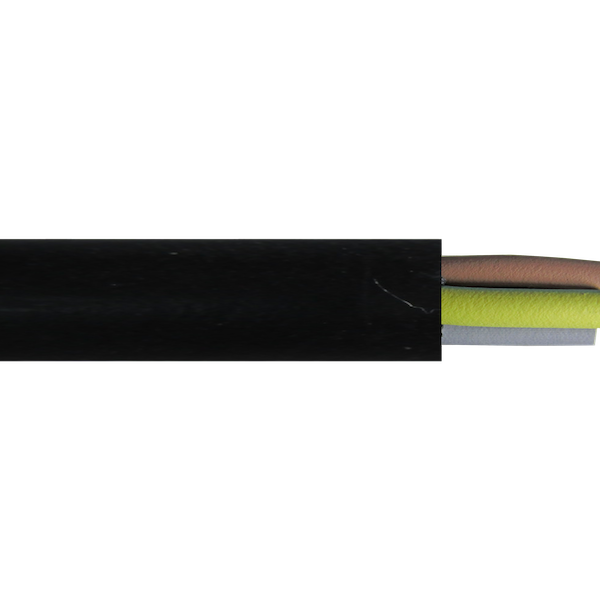

Conductor Annealed tinned copper stranded high flexibility (Class 5).
Insulation EPR R90.
Sheath CPE Elastomer Rubber.
Operating Temperature Range Fixed -40°C to 90°C / Flexing -25°C to 90°C.
Maximum Conductor Temperature 90°C. (Current ratings are based on 30°C air temp. See technical section for de-rating factors).
Rated Voltage H05=300/500V, H07=0.6/1kV.
Max AC Operating Voltage Uo 0.7kV.
Minimum Bending Radius Fixed 4 x cable diameter / Flexing 6 x cable diameter / Drag chains and spring reelers 10 x cable diameter.
Sheath Colour Black.
Standard Core Colours
2 core – Blue, Brown.
3 core – Blue, Brown, Green/Yellow.
4 core – Brown, Black, GREY, Green/Yellow.
Multicore – Black Numbered + Green/Yellow.
Relevant Standards H07RN-F Type, DIN VDE 0295, DIN VDE 0165, IEC 60332-1, EN 50363, EN 50525-2-21, ROHS Compliant.
