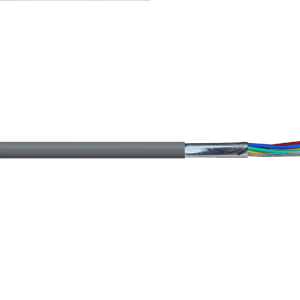

HCG306

6 x 0.5mm²


High Performance Flexible Overall Foil Screened Cable 110V 75°C


Keywords: HCG3 Series, BUS Systems, Audio, E.L.V Signals, Control, Marine, Tinned Copper



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


BUS Systems Extra low capacitance cable suitable for RS232, RS423 and building and home BUS automation systems.

Audio Oxygen free copper for audio controls.

E.L.V Signal and Controls Fixed wiring E.L.V power control or signal cables on machines, conveying equipment, instrumentation or similar industrial applications.

Marine Tinned copper conductors for use in marine applications.


PRODUCT FEATURES:



  • Tinned fine stranded copper conductor

  • High flexibility

  • Prevents external interference

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation Special SPVC.

Screening Collective shield of aluminium/polyester foil c/w tinned copper drain wire.

Sheath Special SPVC.


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 75°C.

Maximum Conductor Temperature 75°C.

Rated Voltage 110VRMS/150VDC.

Minimum Bending Radius Fixed 10 x cable diameter.

Sheath Colour Grey.

Standard Core Colours (See Technical Section - Core Colours chart A)

Resistance Maximum 38.20 ohms/Km @ 20°C.

Capacitance Nominal wire to wire pF/M150.

Relevant Standards AS/NZS 1125, IEC 60332-1, ROHS Compliant.


COMPLIANCE DOCUMENT:


HCG3 Certificate of Compliance

Product Code: HCG306 Categories: ,

No. of Cores x Size (mm²): 6 x 0.5

Nearest AWG: 20

Approx. Stranding (No. of wires x mm²): 16/0.20

Approx. Overall Diameter (mm): 7.1

Approx. Weight (Kg/Km): 78
