APPLICATIONS:
Glanding For watertight glanding of screened circular cables.
VSD Used for glanding copper braided screened VSD cables at both input (power source to variable speed drive) and output (variable speed drive to motor) ends for VSD applications.
PRODUCT FEATURES:
- Halogen free
- Phosphorous free
- Cadmium free
- Self extinguishing

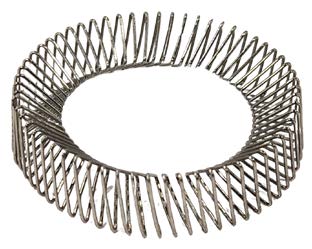

360° CONTACT SPRING DESIGN
Specialised low resistance 360° contact spring maintains constant, uniform pressure against the cable screen for optimal noise suppression.
Allows smooth cable insertion, rotation, or adjustment without damaging the screen.

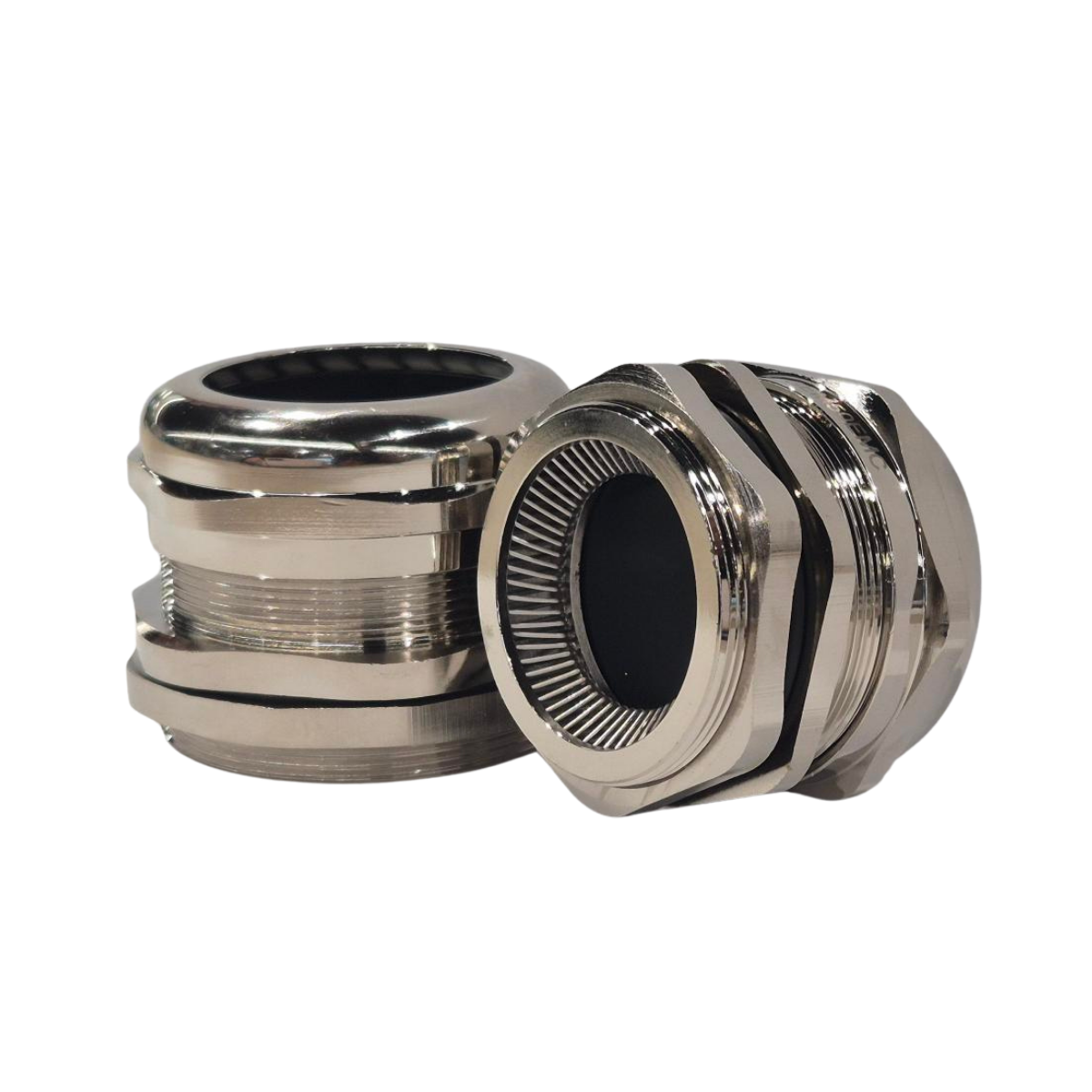

CONSTRUCTION:
Material Bright nickel plated extruded brass gland body and compression head (Brass BS EN 50262 1999 / Brass extrusion BS 2874 CZ121 3Pb).
Seal Silicone rubber.
O-Ring PCP Silicone rubber.
Insert PCP Silicone rubber.
CHARACTERISTICS:
Operating Temperature Range -40°C to 80°C. Up to 100°C for short periods.
Protection Class Water rating IP68. Pressure rating 5 bar.

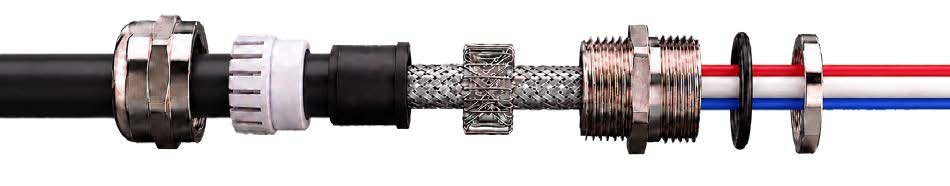

INSTALLATION:

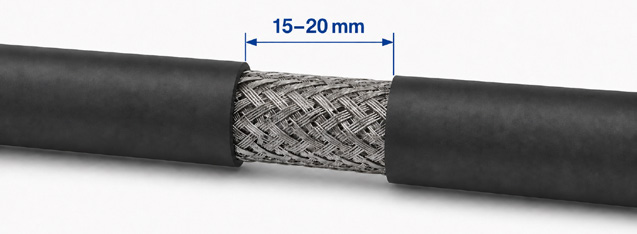

- Make two ring cuts in the sheath 15-20mm apart
- Cut longitudinally between these cuts and remove the sheath to expose the screen
- Insert the cable ensuring the screen makes contact with the gland spring – the sheath may continue to the point where the tails terminate if required.
- Includes an EMC locknut with cutting blades to establish an electrically conductive connection to bare or painted metal surfaces.
