FTM2/2.5

2 x 2.5mm2

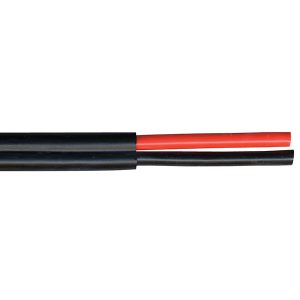

High Performance Flexible Twin Marine Cable 300/500V 75°C


Keywords: FTM, Marine, Lighting, Audio, Tinned Copper, Multi core



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Marine Suitable for wiring on pleasure craft and other marine applications requiring flexible tinned copper conductors.

Lighting Used for festoon and garden lighting where a flexible cable is required.

Audio Amplifiers and audio equipment where oxygen free copper wire is required.


PRODUCT FEATURES:



  • Tinned fine stranded copper conductor

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (refer to Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded high flexibility (Class 5).

Insulation Special SPVC V-75.

Sheath SPVC 4V-75.


CHARACTERISTICS:


Operating Temperature Range Fixed -20℃ to 75℃ / Flexing -5℃ to 75℃.

Maximum Conductor Temperature 75℃. (Current ratings are based on 30℃ air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 300/500v.

Max AC Operating Voltage Uo 318v.

Minimum Bending Radius Fixed 10 x cable diameter / Flexing 15 x cable diameter.

Sheath Colour Black.

Standard Core Colours Red, Black.

Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1, ROHS Compliant.


COMPLIANCE DOCUMENT:


FTM Certificate of Compliance

Product Code: FTM2/2.5 Categories: ,

No. of Cores x Size (mm²): 2 x 2.5

Approx. Stranding (No. of wires x mm): 80/0.20

Approx. Overall Diameter (mm): 5.4h x 8.8w

Approx. Weight (Kg/Km): 90

Nominal Amps un-enclosed protected from sun @ 30°C fixed application
Spaced: 30
Touching:
29

1 Phase Volt Drop @ 50Hz / MAX. Conductor Temp 90°C (Mv/Am): 19.400
