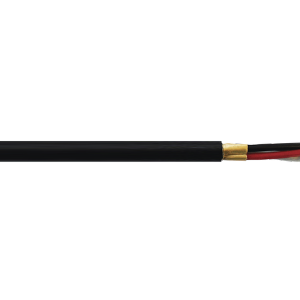

FT8103CSBMS

1 TRIPLE 0.81mm²


High Performance BMS/Control Overall Foil Screened Tinned Cable 110VAC 90°C


Keywords: FT81 Series, Tinned Copper, Data, Audio, Communication



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


BMS Used for building management systems and cabling for HVAC controls.

Audio Oxygen free copper for audio applications, PA systems and security gate intercoms.


PRODUCT FEATURES:



  • Fine stranded tinned copper conductor

  • UV stabilised

  • Flame retardant

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).

Insulation PE Polyethylene.

Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire.

Sheath SPVC 5V-90.


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 75°C.

Maximum Conductor Temperature 75°C.

Rated Voltage 110V RMS.

Minimum Bending Radius Fixed 7.5 x cable diameter.

Sheath Colour Black.

Standard Core Colour

1 Pair - Black & Natural.

1 Triple - Black, Red & Natural.

Relevant Standards AS/NZS 3808, AS/NZS 3008, IEC 60332-1-2, ROHS Compliant.


COMPLIANCE DOCUMENT:


FT81 Certificate of Compliance

Product Code: FT8103CSBMS Categories: ,

No. of Cores x Size (mm²): 1 TRIPLE 0.81

Approx. Stranding (No. of wires x mm²): 16/0.25

Approx. Overall Diameter (mm): 6.4

Approx. Weight (Kg/Km): 65

Technical Data
