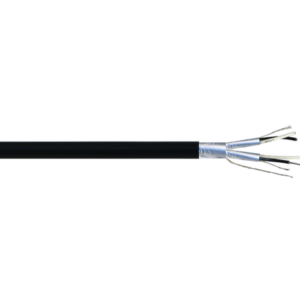

FT65502ESCS

2 PAIR 1.5mm²


High Performance Multipair Overall & Individually Foil Screened Tinned Instrumentation Cable 0.6 / 1kV 90°C


Keywords: FT655-ESCS Series, Signals, Control, Marine, Low Voltage, Tinned Copper



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.

Marine Tinned copper conductors for use in marine applications.

Low Voltage With its 600V rated insulation and 1.8mm thick sheath, this series is suitable to run next to low voltage mains.

Oil and gas industry with vertical flame propagation to IEC 60332-3-22.


PRODUCT FEATURES:



  • Tinned copper conductors

  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Reduced flame propagation

  • Heat, oil and chemical resistant (See Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).

Insulation Special SPVC V-90 (available in LSHF on request).

Filler Non-hydroscopic polypropylene filler.

Screening Collective shield of aluminium/polyester foil complete with Tinned copper drain wire.

Bedding Flame retardant 5V-90 PVC extruded non hydroscopic.

Sheath Special SPVC 5V-90 (available in LSHF on request).


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 0.6/1kV.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Black.

Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores. (Triple - White/Black/Red)

Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1-2, IEC 60079.14, IEC 60332-3-22, ROHS Compliant.


COMPLIANCE DOCUMENT:


FT655 ESCS Certificate of Compliance

Product Code: FT65502ESCS Categories: ,

No. of Cores x Size (mm²): 2 pair 1.5mm²

Nearest AWG: 15

Approx. Stranding (No. of wires x mm²): 7/0.50

Approx. Overall Diameter (mm): 15.3

Approx. Weight (Kg/Km): 210
