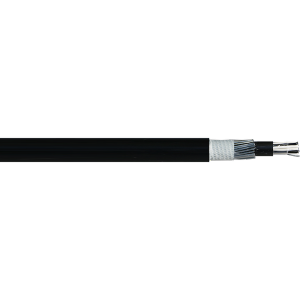

FT5510CS SWA

10 PAIR 1.5mm²


High Performance Multipair SWA Overall Foil Screened Tinned Instrumentation Cable 110VAC 90°C


Keywords: FT50/55-CS/SWA Series, Hazardous Areas, BUS Systems, Signals, Control, Marine, Tinned Copper



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Hazardous Areas This steel wire armour cable is suitable for use for instrumentation in oil and gas industries, mine sites and other harsh environments.

Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.

Marine Tinned copper conductors for use in marine applications.

Oil and gas industry with vertical flame propagation to IEC 60332-3-22.


PRODUCT FEATURES:



  • Tinned copper conductors

  • Steel wire armoured for hazardous conditions

  • Extremely pliable PVC sheath

  • UV stabilised

  • Flame retardant

  • Reduced flame propagation

  • Heat, oil and chemical resistant (see Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed tinned copper stranded (Class 2).

Insulation Special SPVC V-90(available in LSHF on request).

Filler Non-hydroscopic polypropylene filler.

Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire.

Bedding Flame retardant 5V-90 PVC extruded non-hydroscopic.

Armour Steel wire armour.

Sheath Special SPVC 5V-90 (available in LSHF on request).


CHARACTERISTICS:


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VAC / 150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Black.

Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores.

Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1-2, IEC 60079.14, IEC 60332-3-22, ROHS Compliant.


COMPLIANCE DOCUMENT:


FT50/55 Certificate of Compliance

Product Code: FT5510CS SWA Categories: ,

No. of Cores x Size (mm²): 10 PAIR 1.5

Nearest AWG: 15

Approx. Stranding (No. of wires x mm²): 7/0.50

Overall Diameter over Bedding (mm): 16.7

Overall Diameter over Armour (mm): 19.2

Approx. Overall Diameter (mm): 22.5

Approx. Weight (Kg/Km): 1043

Gland Size: GMCW25
