Suitable for Firstflex FLA aluminium conductor cable and copper circuit breaker terminals.
The range of circuit breaker bi-metallic compression lugs are designed specifically for terminating fine stranded Firstflex FLA flexible aluminium cables. The aluminium barrel is sized to suit the larger overall diameters of flexible conductors, ensuring full strand containment and reliable crimp performance.

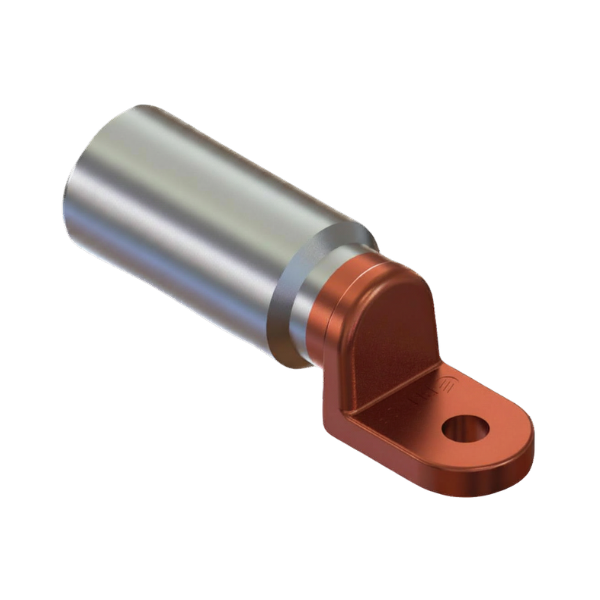

The lug comprises a high-conductivity aluminium barrel friction welded to an electrolytic copper palm, providing a strong, corrosion-resistant transition joint. The barrel is pre-filled with oxide-inhibiting compound to minimise oxidation and maintain low contact resistance.
Suitable for hexagonal compression crimping using the specified A/F dies.
Where multiple crimps are required, crimp from the palm end toward the cable entry.
Conforms to: AS/NZS 4325.1 and IEC 61238-1-1
